คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|

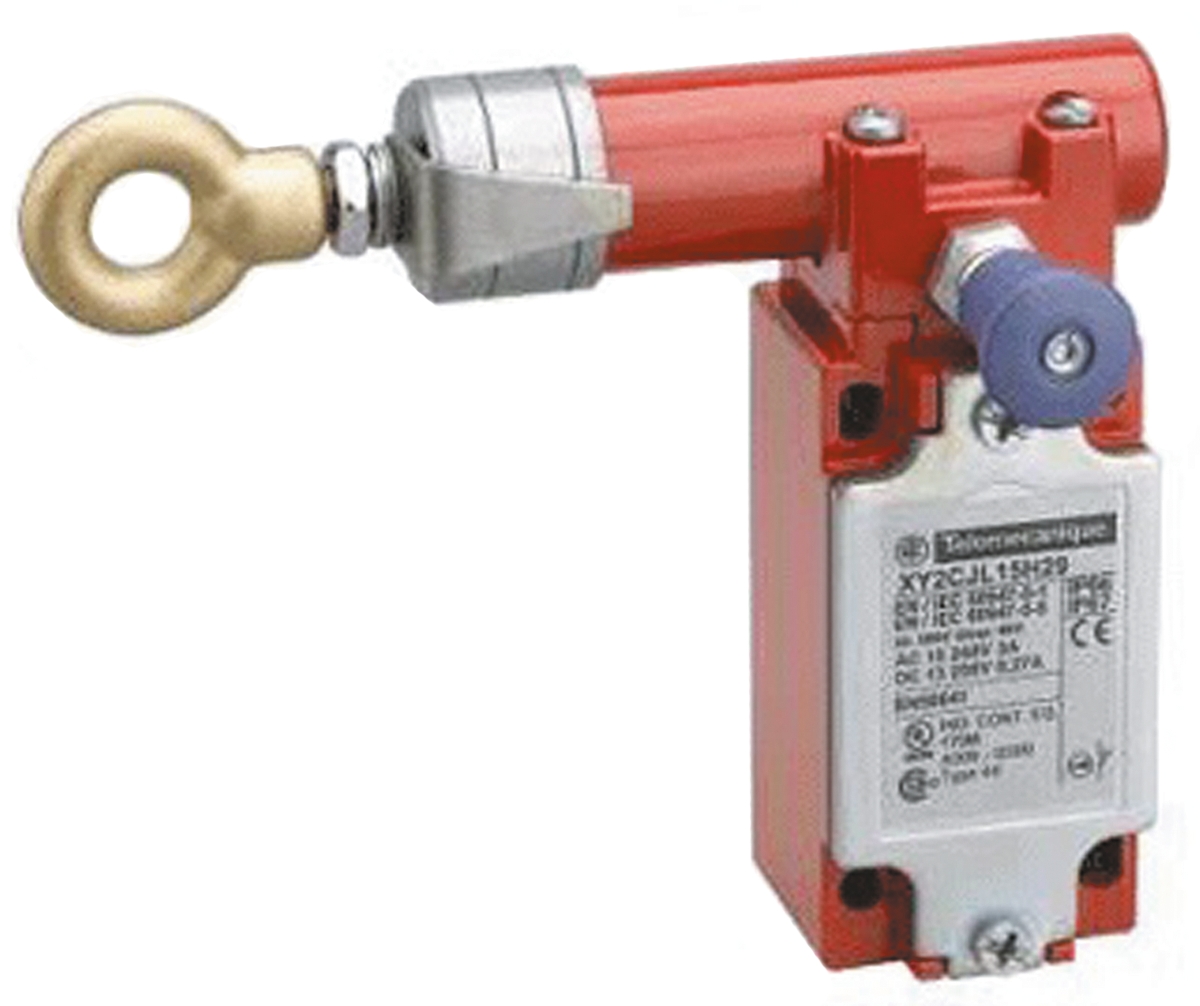

| Range | Preventa |
| Series | XY2CJ |
| Reset Button | Yes |
| Pole Configuration | 2P |
| Normal State Configuration | NC/NO |
| Mounting Orientation | Left Side |
| Maximum Rope Span | 30m |
| Maximum Current | 270 mA @ 250 V dc, 3 A @ 240 V ac |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Zamak |
| Number of Cable Entries | 1 |
| Size of Cable Entries | M20 |
| Length | 158mm |
| Width | 64.2mm |
| IP Rating | IP66, IP67 |
| Depth | 109mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 158 x 64.2 x 109 mm |
| Maximum Operating Temperature | +70°C |
| E-Stop Button | Yes |
