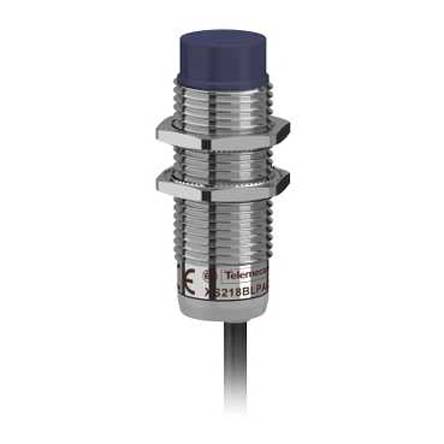

รายละเอียดสินค้า / Product Details
| คุณสมบัติ | Value |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NC |
| Detection Range | 8 mm |
| Terminal Type | Pre-Cabled |
| Supply Voltage | 12 → 24 V dc |
| Length | 53mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Non Flush |
| IP Rating | IP65, IP67 |
| Switching Current | ≤200 mA |
| Housing Material | Nickel Plated Brass |
| Standards Met | CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, UL |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 500Hz |
| Dimensions | M18 x 53 mm |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Shielding | Partial |
