คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|

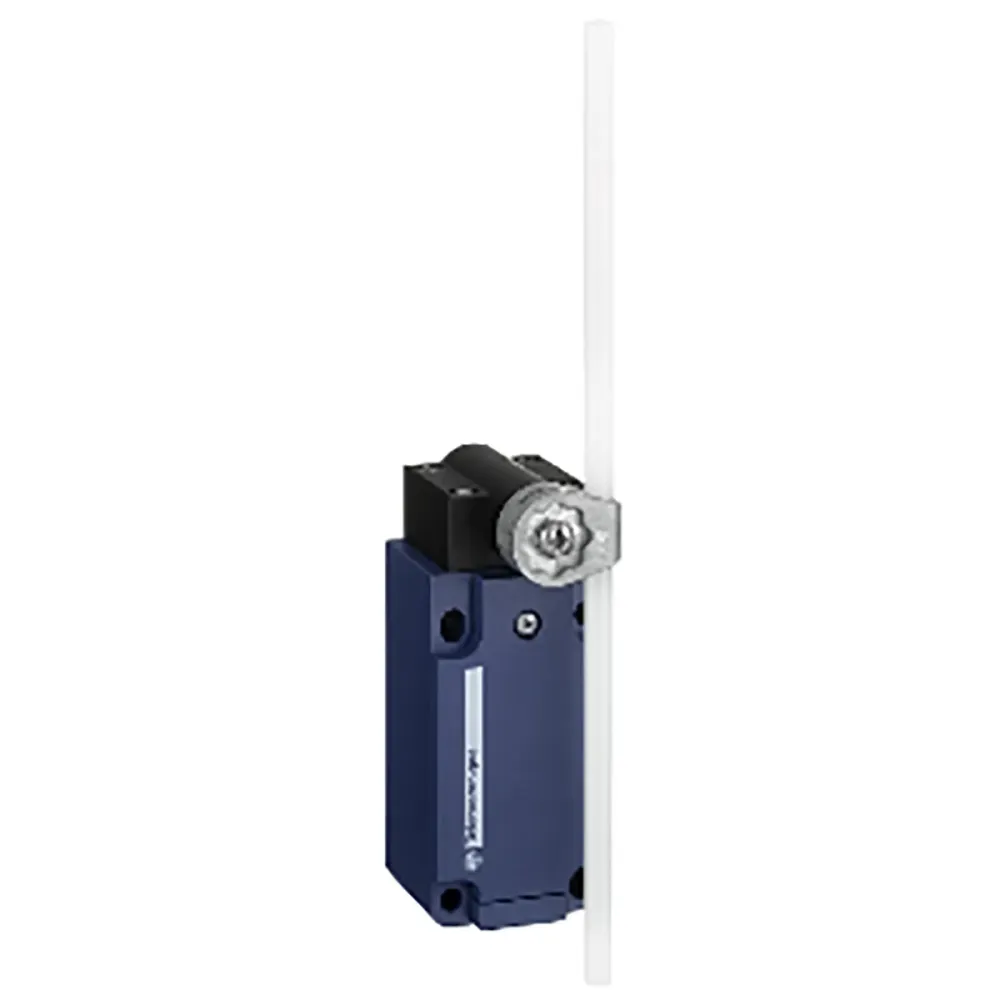

| Actuator Type | Spring Return Round Rod Lever Thermoplastic |
| Pole and Throw Configuration | 2P |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67 |
| Maximum Current | 3 A |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 55mm |
| Maximum Operating Temperature | +70°C |
| Standards Met | CCC Certified, CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Depth | 280mm |
| Operating Force | 0.1Nm |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Vertical |
| Dimensions | 40 x 55 x 280 mm |
| Mechanical Life Minimum | 20000000 cycles |
