คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Display Type | LCD |
| Number of Phases | 3 |
| Depth | 72mm |
| Meter Accuracy | ?0.005 (Power Factor) %, ?0.05 (Frequency) %, ?0.5 (Active Energy) %, ?0.5 (Active Power) %, ?0.5 (Apparent Power) %, ?0.5 (Current) %, ?0.5 (Voltage) %, ?2 (Reactive Energy) % |
| Minimum Temperature | -25?C |
| Maximum Temperature | +70?C |
| Maximum Measurement | 9 A, 65 Hz, 400 (Phase and Neutral) V ac, 690 (Phase) V ac |
| Meter Type | Electromechanical |
| Measurement Range | 10 mA 9 A, 20 400 (Phase and Neutral) V ac, 35 690 (Phase) V ac, 45 65Hz |
| Approvals | CE Conforming to IEC 61010-1c, CULus Conforming to UL 61010-1, EN 50470-1, EN 50470-3, IEC 60529, IEC 61557-12, IEC 62053-22, IEC 62053-24 |
| Minimum Measurement | 10 mA, 45 Hz, 20 (Phase and Neutral) V ac, 35 (Phase) V ac |

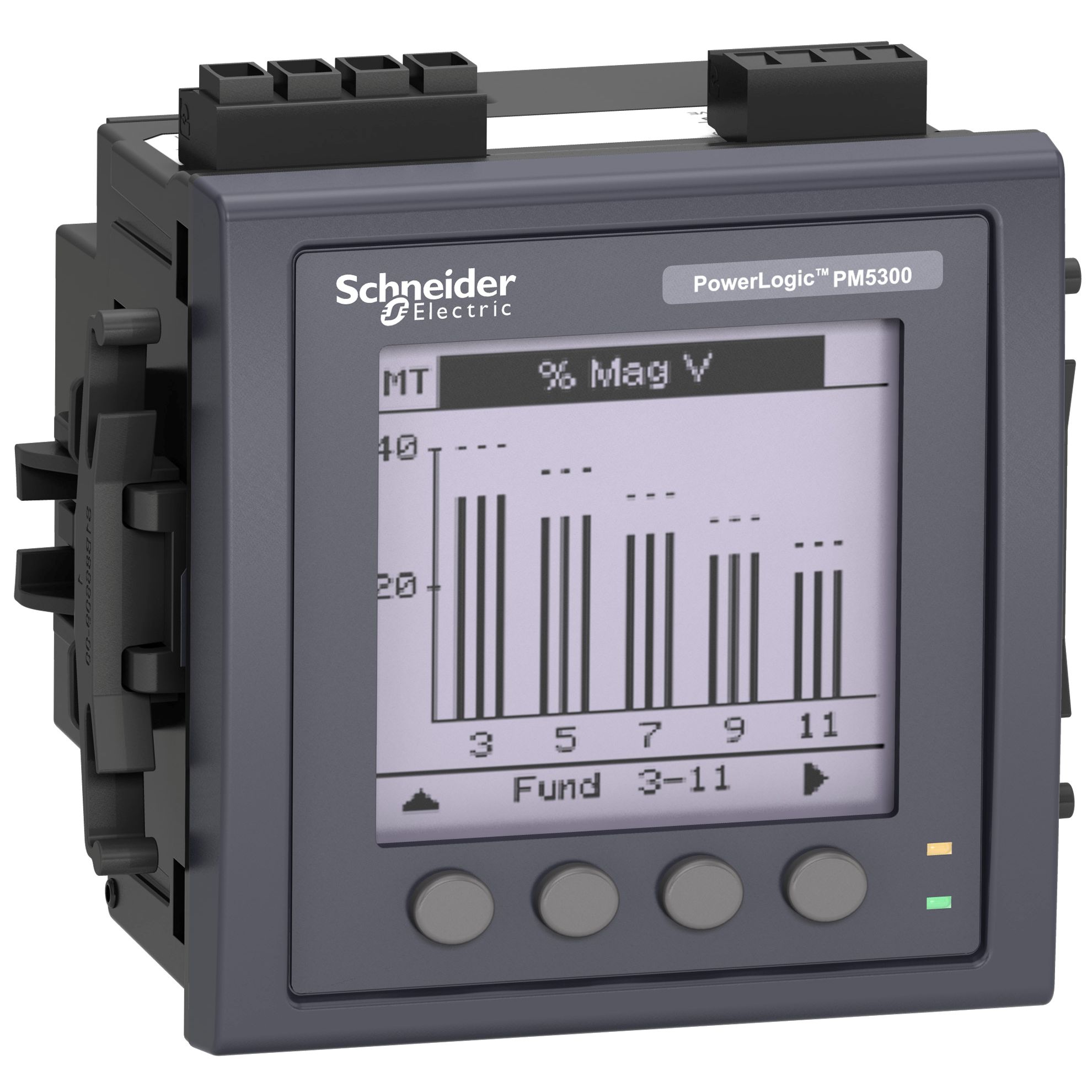

| Series | PM5000 |
