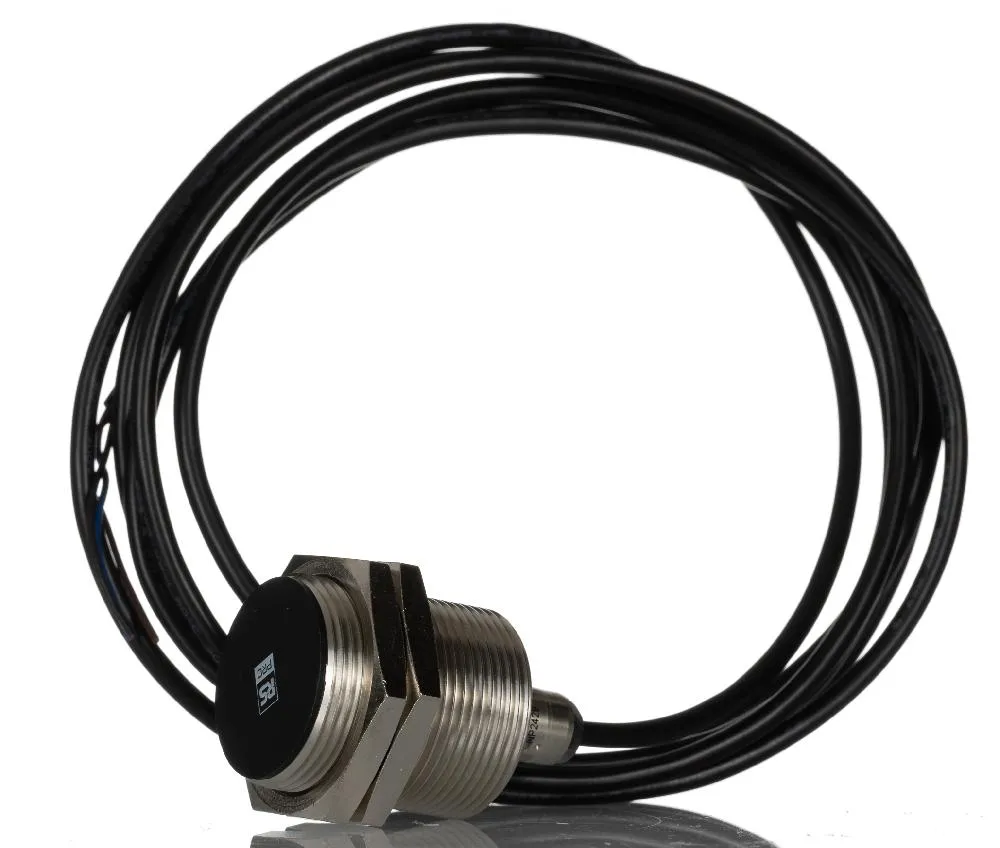

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | NPN-NO |
| Detection Range | 10 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 51mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Maximum Switching Frequency | 500Hz |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +75°C |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CULus Listed, EN 60947-5-2, RoHS Compliant, UL |
