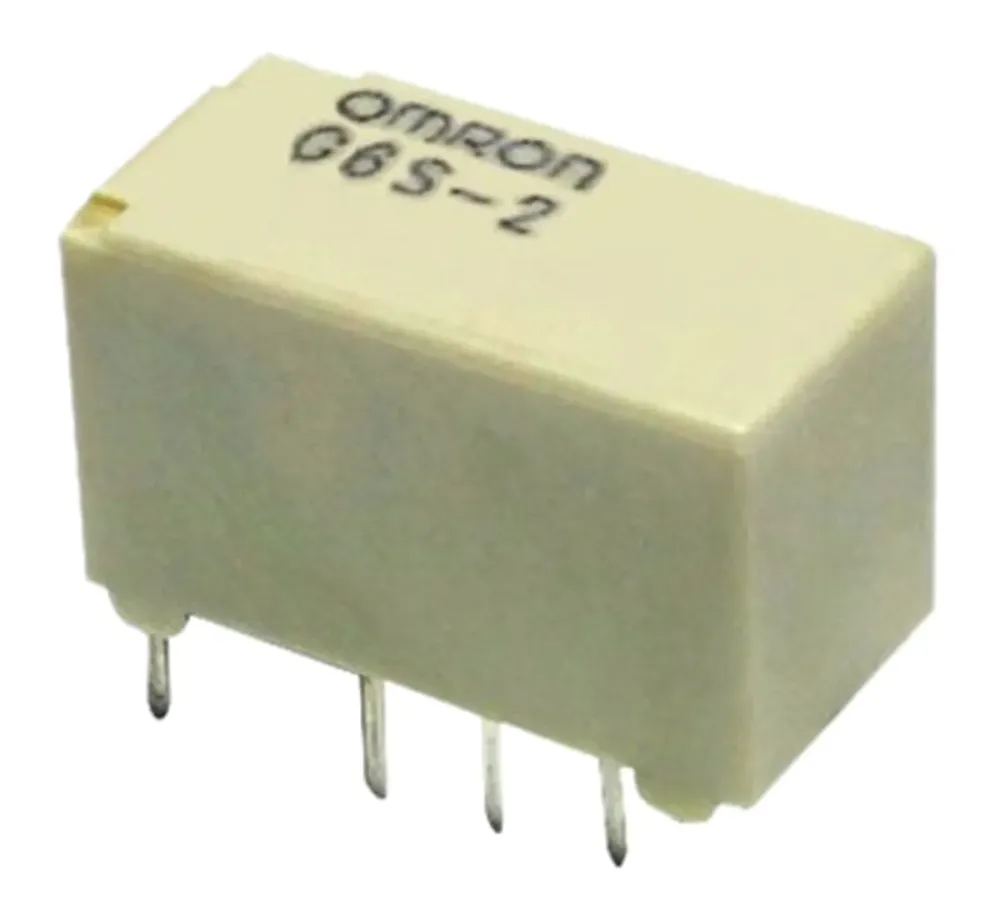

คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 9V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Series | G6S |
| Maximum Switching Power DC | 60 W |
| Latching | No |
| Length | 14.8mm |
| Depth | 7.3mm |
| Height | 9.2mm |
| Dimensions | 14.8 x 9.2 x 7.3mm |
| Terminal Type | PCB Pin |
| Switching Current | 2A |
| Application | Signal |
| Number of Poles | 2 |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Plated |
| Features | Space Saving Inside L Terminal, Low Power Consumption, Applicable To IRS, High Saleability After IRS |
| Operating Temperature Range | -40 - +85°C |
| Coil Resistance | 178Ω |
| Maximum Switching Power AC | 62.5 VA |
| Minimum Operating Temperature | -40°C |
| Coil Power | 140mW |
| Electrical Life | 100000 Operations |
