คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Maximum Switching Current AC | 2 A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |

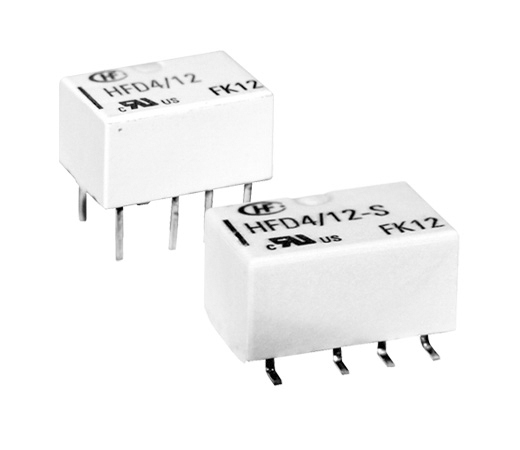

| Series | HFD4 |
| Length | 10mm |
| Latching | No |
| Depth | 6.5mm |
| Height | 5.65mm |
| Dimensions | 10 x 6.5 x 5.65mm |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Switching Current | 2A |
| Contact Material | Gold Plated |
| Isolation Coil To Contact | 2.5kV ac |
| Relay Switching Classification | Subminiature Signal Relay |
| Electrical Life | 100000 Operations |
| Life | 1 x 10^8 cycles |
| Features | Offers Excellent Board Space Savings, Low Power Consumption, Single Or Double Coil Winding Type Available |
| Maximum Switching Power AC | 62.5VA |
| Maximum Operating Temperature | +85°C |
| Coil Resistance | 1028Ω |
| Operating Temperature Range | -40 - +85°C |
| Minimum Operating Temperature | -40°C |
| Coil Power | 140mW |
