คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Input Voltage | 264V ac |
| Minimum Input Voltage | 85V ac |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 24 V |
| Minimum Output Voltage | 24V dc |
| Maximum Output Voltage | 28V dc |
| Output Current | 3.2 A |
| Power Rating | 75W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |

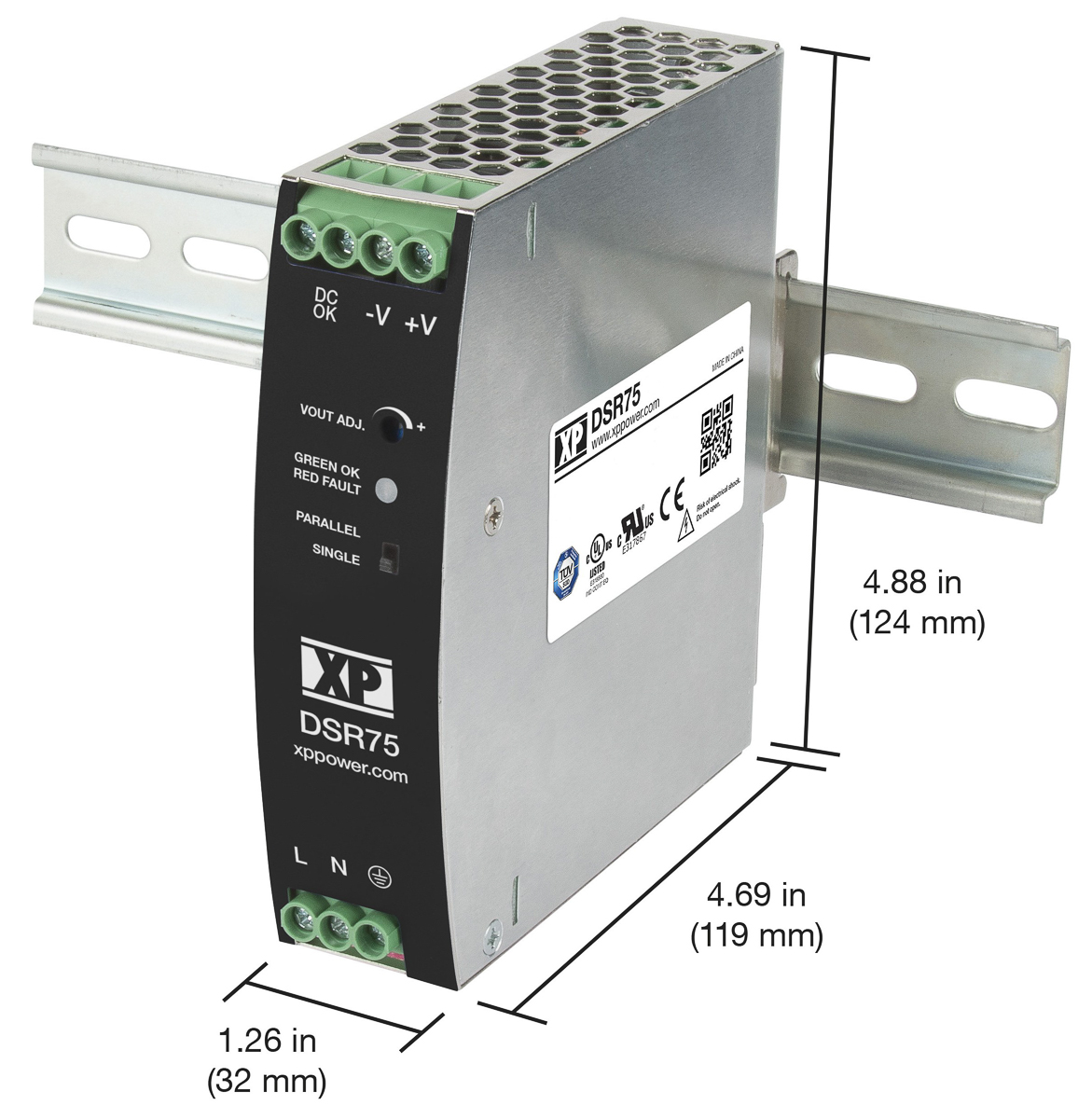

| Dimensions | 32 x 119 x 124mm |
| Height | 124mm |
| Width | 32mm |
| Weight | 480g |
| Maximum Temperature | +70°C |
| Line Regulation | ±0.5% |
| Input Frequency Range | 47 → 63Hz |
| Ripple And Noise | 240mV Pk-Pk |
| Minimum Temperature | -25°C |
| Allowed Circuit Configurations | Parallel |
| Load Regulation | ±1% |
| Holdup Time | 20ms |
| Input Electrical Phase | 1 |
| Depth | 119mm |
| Maximum Input Current | 0.8A |
| Series | DSR75 |
| Mounting Type | DIN Rail Mount |
| Power Signal Conversion Type | AC-DC |
| MTBF | 300kh |
