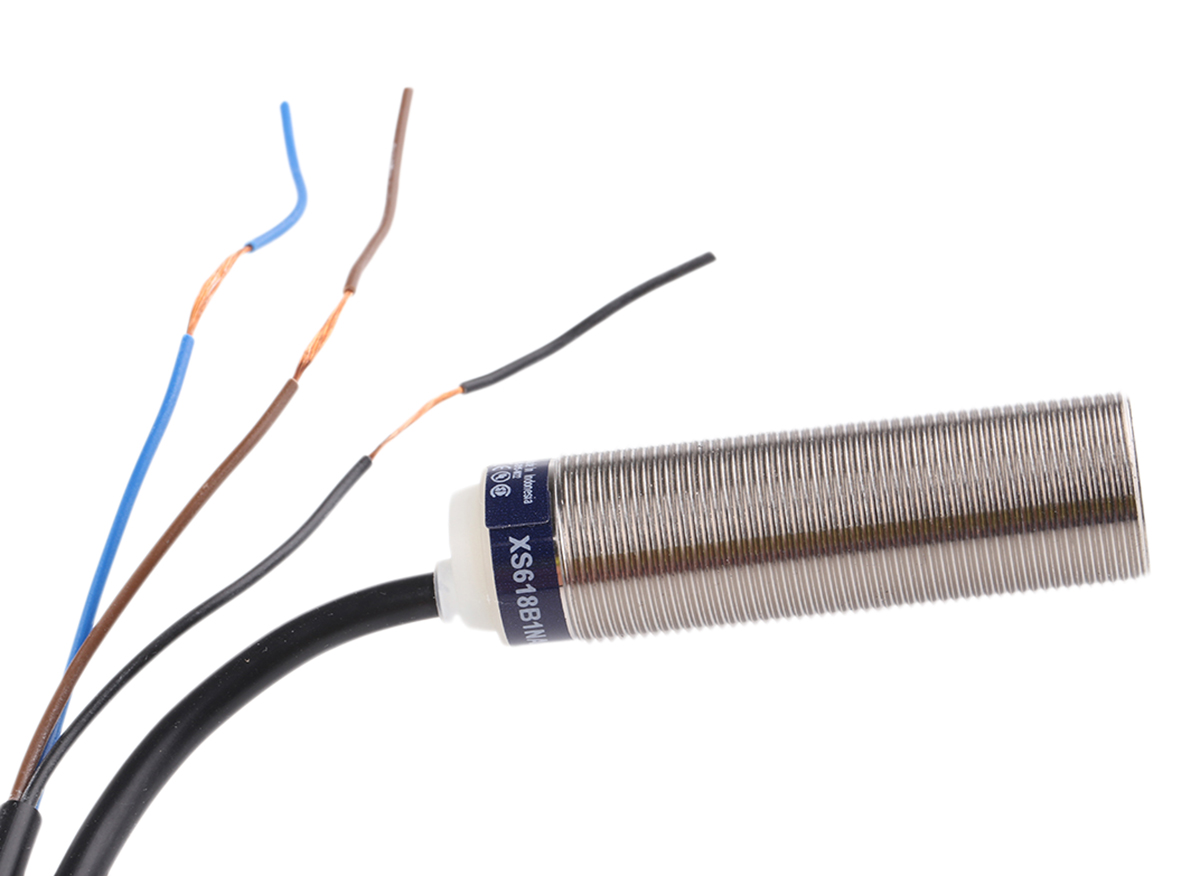

รายละเอียดสินค้า / Product Details
| คุณสมบัติ | Value |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | NPN |
| Detection Range | 8 mm |
| Terminal Type | Wire Lead |
| Supply Voltage | 12 → 48 V dc |
| Length | 62mm |
| Maximum DC Voltage | 58V |
| Mounting Type | Flush Mount |
| IP Rating | IP69K |
| Switching Current | 200 mA |
| Housing Material | Nickel Plated Brass |
| Maximum Switching Frequency | 1kHz |
| CAD Drawing | 3D CAD Model |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Dimensions | M18 x 62 mm |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
