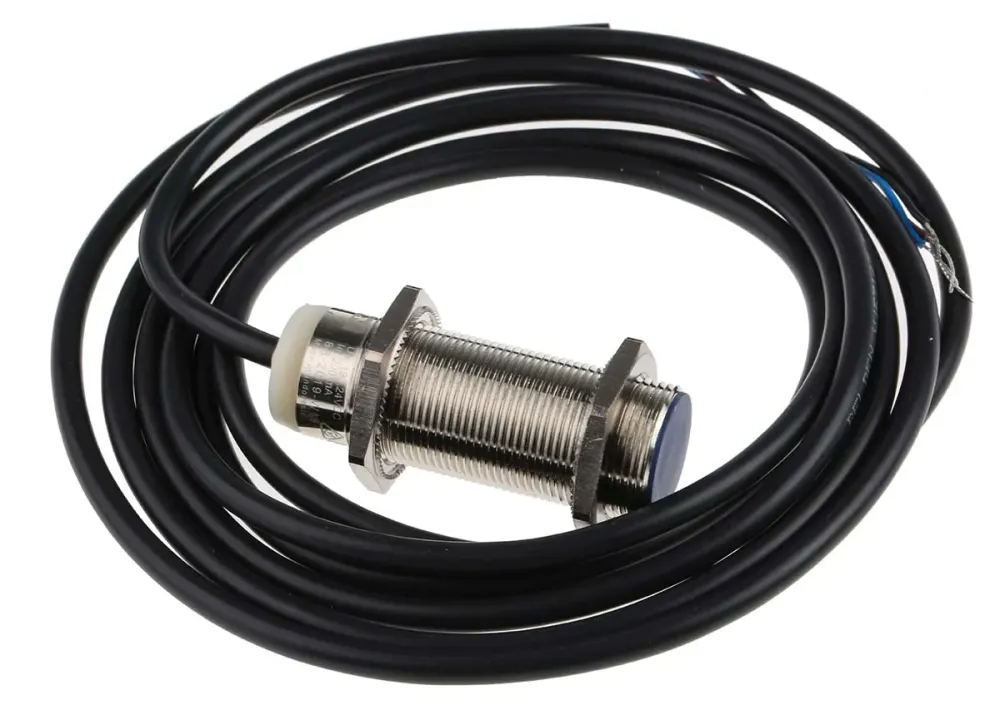

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Sensor Technology | Inductive |
| Thread Size | M18 x 1 |
| Body Style | Barrel |
| Output Type | PNP |
| Detection Range | 5 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 24 V dc |
| Length | 53mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Flush Mount |
| IP Rating | IP65, IP67 |
| Switching Current | 200 mA |
| Housing Material | Brass Nickel Plated |
| Maximum Switching Frequency | 1.2kHz |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Shielding | Unshielded |
| Standards Met | CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, UL |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
