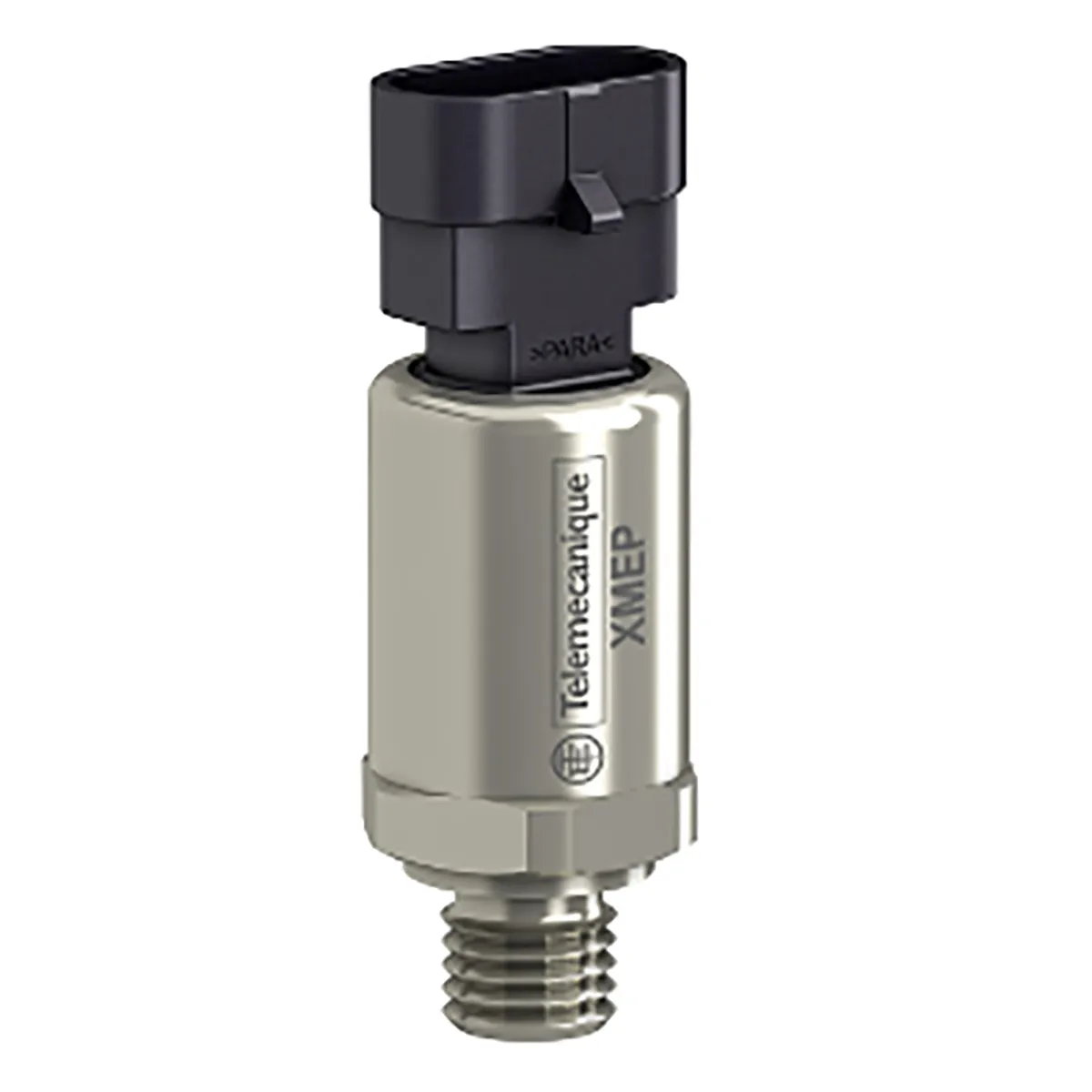

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 100bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Air, Fresh Water, Hydraulic Oil |
| Process Connection | G1/4 |
| Analogue Output | 0.5 → 4.5 V |
| Electrical Connection | 3 Pin Male Connector AMP SUPERSEAL 1.5 |
| Response Time | <=2 ms |
| Maximum Current | 7 mA |
| Supply Voltage | 5 V dc |
| Housing Material | Fluorocarbon FPM, Stainless Steel AISI 316L |
| IP Rating | IP65, IP67 |
| Series | XMEP |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Thread Mount |
| Maximum Operating Temperature | +100°C |
