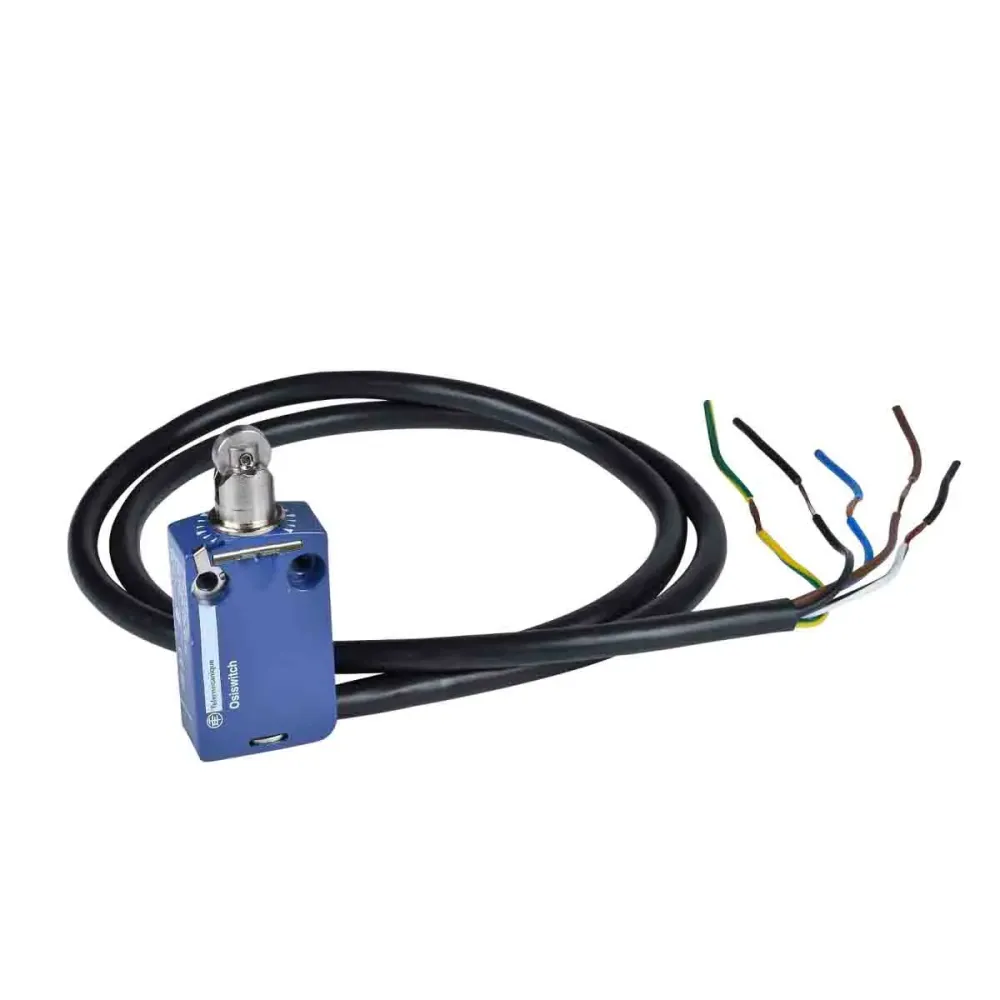

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66, IP67, IP68 |
| Maximum Current | 1.5 A |
| Housing Material | Zamak |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Series | XCMD |
| Contact Type | Snap Action |
| Length | 30mm |
| Width | 16mm |
| Operating Force | 35N |
| Depth | 70.4mm |
| Dimensions | 30 x 16 x 70.4 mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 10000000 cycles |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Cable |
