คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|

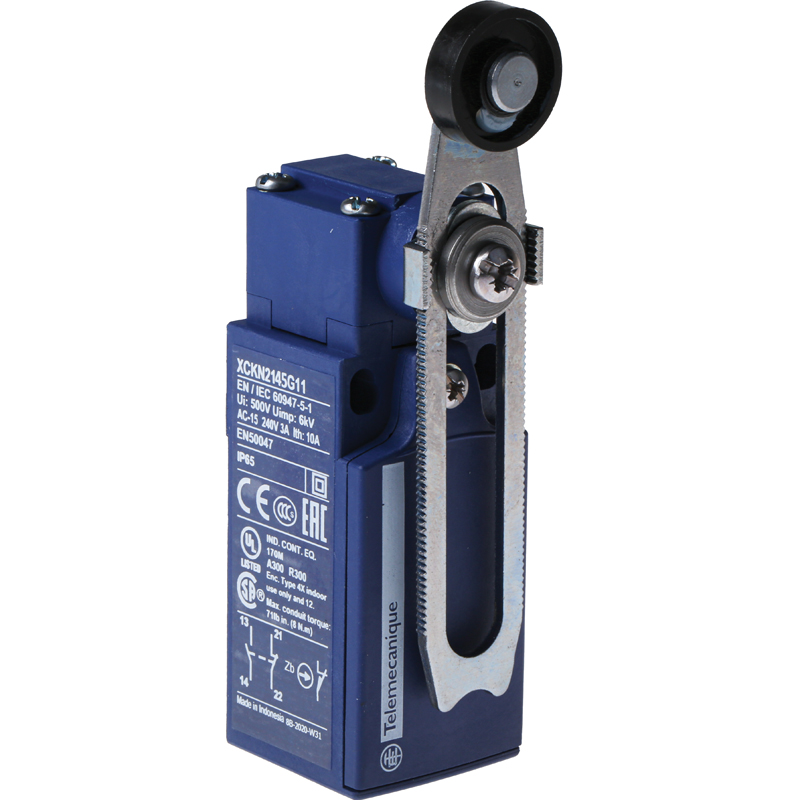

| Actuator Type | Spring Return Roller Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 10 A |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw Clamp |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 30mm |
| Width | 42.3mm |
| Standards Met | CCC, CSA C22.2 No. 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Mounting Orientation | EN50047 |
| Dimensions | 30 x 42.3 x 157 mm |
| Mechanical Life Minimum | 10000000 Cycles |
| Operating Force | 0.1Nm |
| Maximum Operating Temperature | +70°C |
| Depth | 157mm |
| Minimum Operating Temperature | -25°C |
