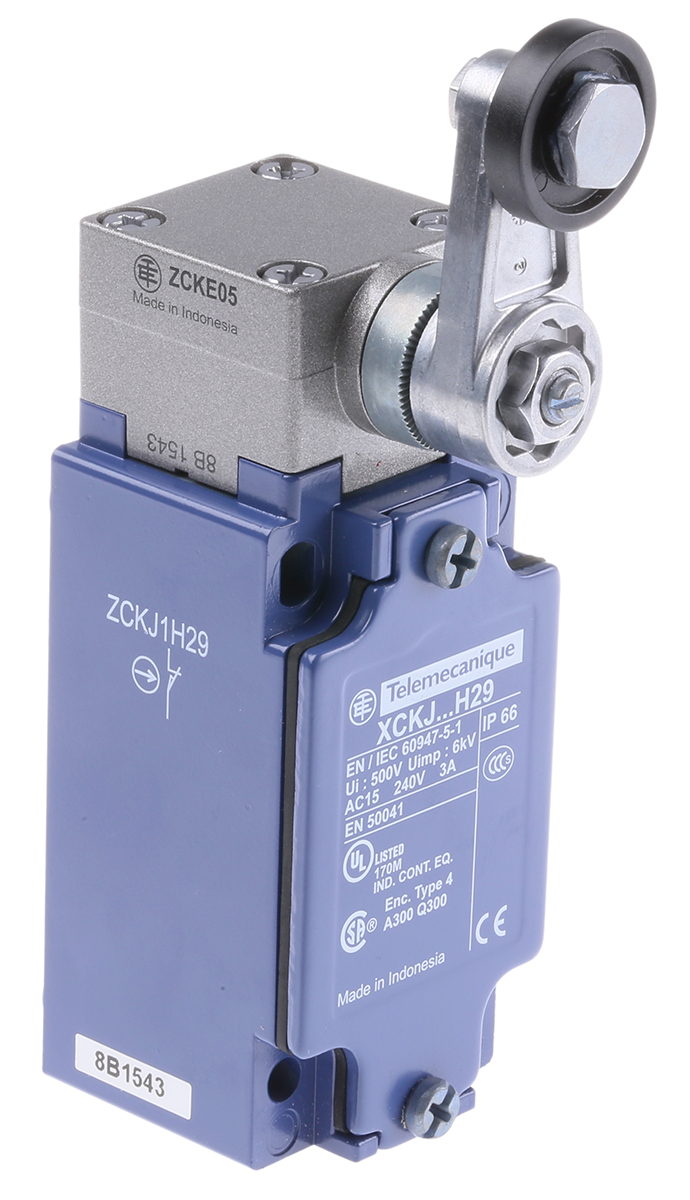

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 10 A |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 77mm |
| Width | 40mm |
| Minimum Operating Temperature | -25°C |
| Depth | 44mm |
| Dimensions | 77 x 40 x 44 mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 30000000 cycles |
| CAD Drawing | 3D CAD Model |
