คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 9 - 36 V dc |
| Power Rating | 5W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 210mA |
| Mounting Type | Surface Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SMD |
| Isolation Voltage | 1.6kV dc |
| Width | 9.1mm |
| Depth | 9.9mm |
| Length | 13.2mm |

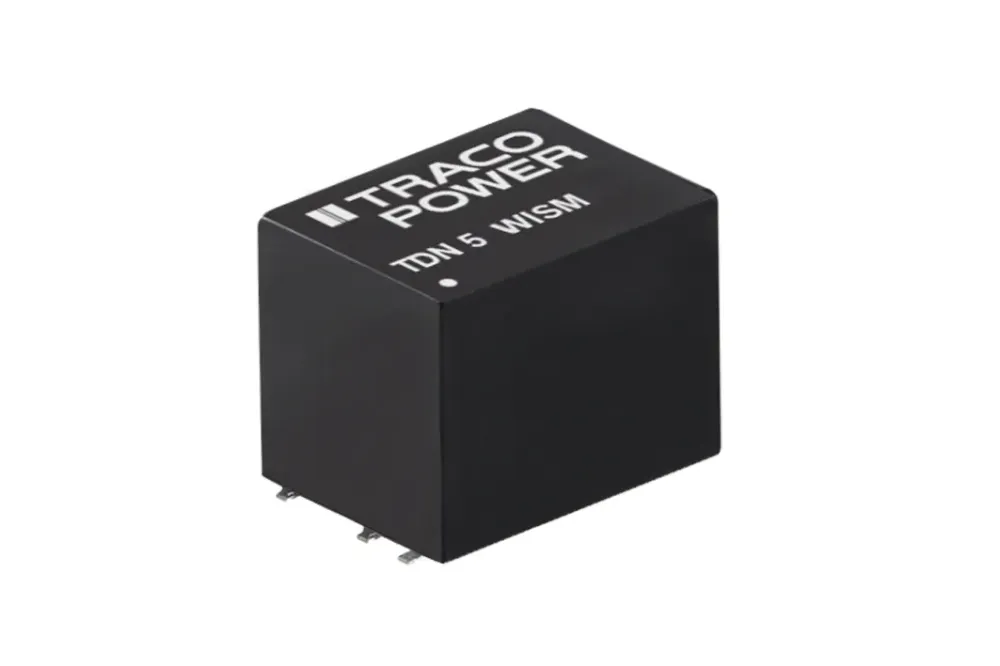

| Series | TDN 5WISM |
| Load Regulation | 0.01 |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F |
| Maximum Temperature | +75°C |
| Efficiency | 83% |
| Minimum Temperature | -40°C |
