คุณสมบัติ | รายละเอียด |
|---|---|

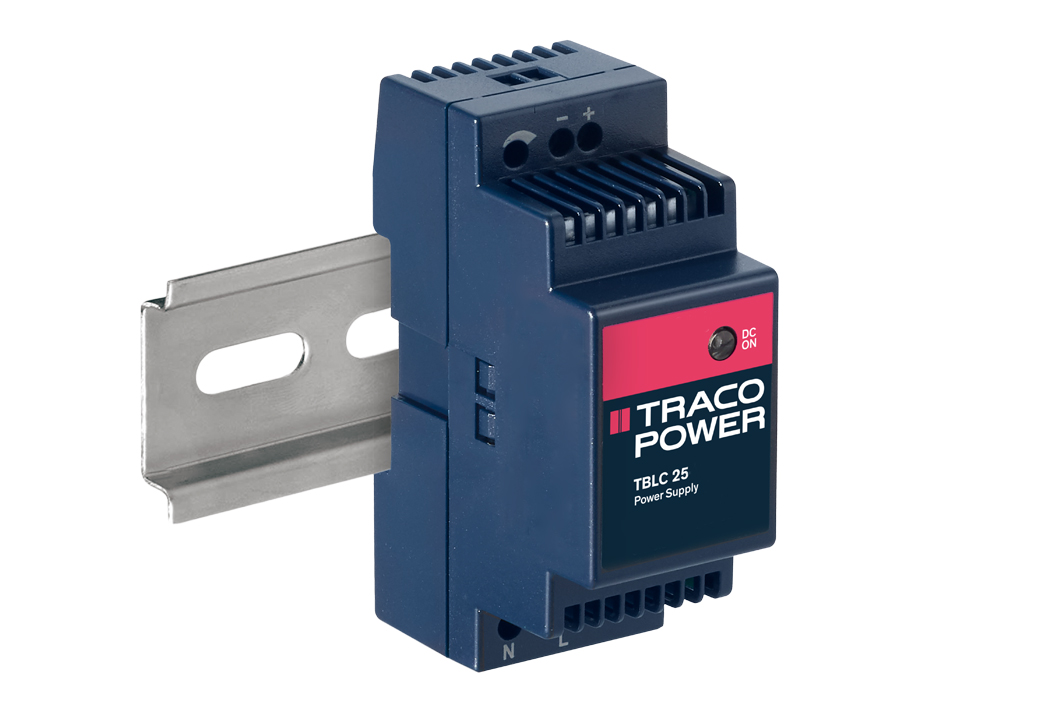

| Series | TBLC 25 |
| Type | Switched Mode |
| Electrical Phase | 1 |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 - 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 12V dc |
| Output Current | 2A |
| Power Rating | 24W |
| Number of Outputs | 1 |
| Dimensions | 89.5 x 18 x 59.5mm |
| Depth | 89.5mm |
| Width | 36mm |
| Height | 59.5mm |
| Special Features | Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes |
| Load Regulation | 0.3% |
| Output Voltage Adjustment Range | 12 - 16V |
| MTBF | 1900000h |
| Ripple And Noise | 50mV Pk-Pk |
| Efficiency | 86% |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
| Standards Met | ErP Compliant |
