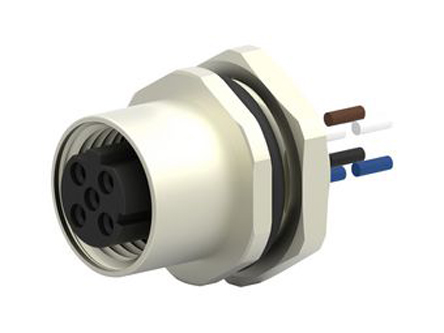

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | T417 |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Length | 200mm |
| Sheath Material | PVC |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 4 |
| Connector 2 | Unterminated |
| Coding | B |
| Mounting Type | Panel Mount |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP67 |
| Maximum Operating Temperature | +85°C |
| Standards Met | IEC 61076-2-101, UL, UL 94 V-0 |
| Cable Shape | Multicore |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Conductor Resistance | |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Self-extinguishing |
| Connector 1 Housing Gender | Female |
| American Wire Gauge | 22 AWG |
| Operating Temperature Range | -40 → +85 °C |
