คุณสมบัติ / Specifications
คุณสมบัติ | รายละเอียด |
---|---|
Input Voltage | 230V ac |
Minimum Input Voltage | 90 V ac, 120 V dc |
Maximum Input Voltage | 264 V ac, 370 V dc |
Output Voltage | Maximum of 24 V dc |
Maximum Output Voltage | 24V dc |
Output Current | 3.8 A |
Power Rating | 91.2W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |
Height | 91mm |
Dimensions | 89.9 x 56.8 x 91mm |
Width | 89.9mm |
Application | Industrial |
Line Regulation | 1% |
Load Regulation | 1 |
Ripple And Noise | 50mV |
Minimum Temperature | -25°C |
Input Frequency Range | 47 → 63Hz |
Depth | 56.8mm |
Maximum Temperature | +71°C |
Protection Features | Over Current Protection, Over Voltage Protection |
Maximum Input Current | 2.2A |
Weight | 320g |
Standards Met | CE, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, UL 508, UL 60950-1, UL 94 V-0 |
Holdup Time | 10ms |
Input Electrical Phase | 1 |
Mounting Type | DIN Rail |
Output Voltage Adjustment Range | 20 → 24.2V |

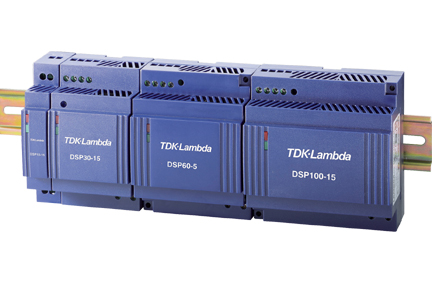

Series | DSP |
Power Signal Conversion Type | AC/DC-DC |
