คุณสมบัติ / Specifications
คุณสมบัติ | รายละเอียด |
---|---|
Power Rating | 1.1 (High Overload) kW, 1.5 (Low Overload) kW |
Phase | 3 |
Supply Voltage | 380 → 480 V |
Current Rating | 4.5 (High Overload) A, 5.5 (Low Overload) A |
Output Frequency | 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz |
Ambient Temperature | -10 → +40°C |
Overall Width | 155mm |
Overall Length | 73mm |
Overall Depth | 173mm |
Drive Type | Vector Control |
Field Bus Communication Type | USS/Modbus RTU |
Special Features | Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control |
Standards Met | C-Tick (RCM), CE, CUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL |
IP Rating | IP20 |

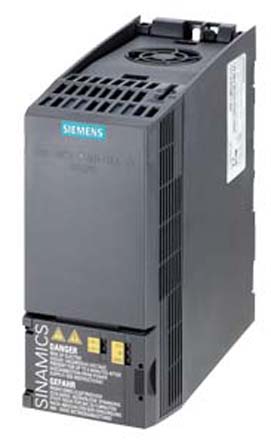

Series | SINAMICS G120C |
