| คุณสมบัติ | Value |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 132 V ac, 120/230 V ac, 176 → 264 V ac |
| Minimum Input Voltage | 85V ac |
| Output Voltage | 24 V dc |
| Maximum Input Voltage | 132V ac |
| Minimum Output Voltage | 24V dc |
| Maximum Output Voltage | 24V dc |
| Output Current | 8 A |
| Power Rating | 192W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Range | SIMATIC Design |
| Height | 147mm |
| Dimensions | 147 x 75 x 129mm |
| Width | 75mm |
| Input Electrical Phase | Single Phase |

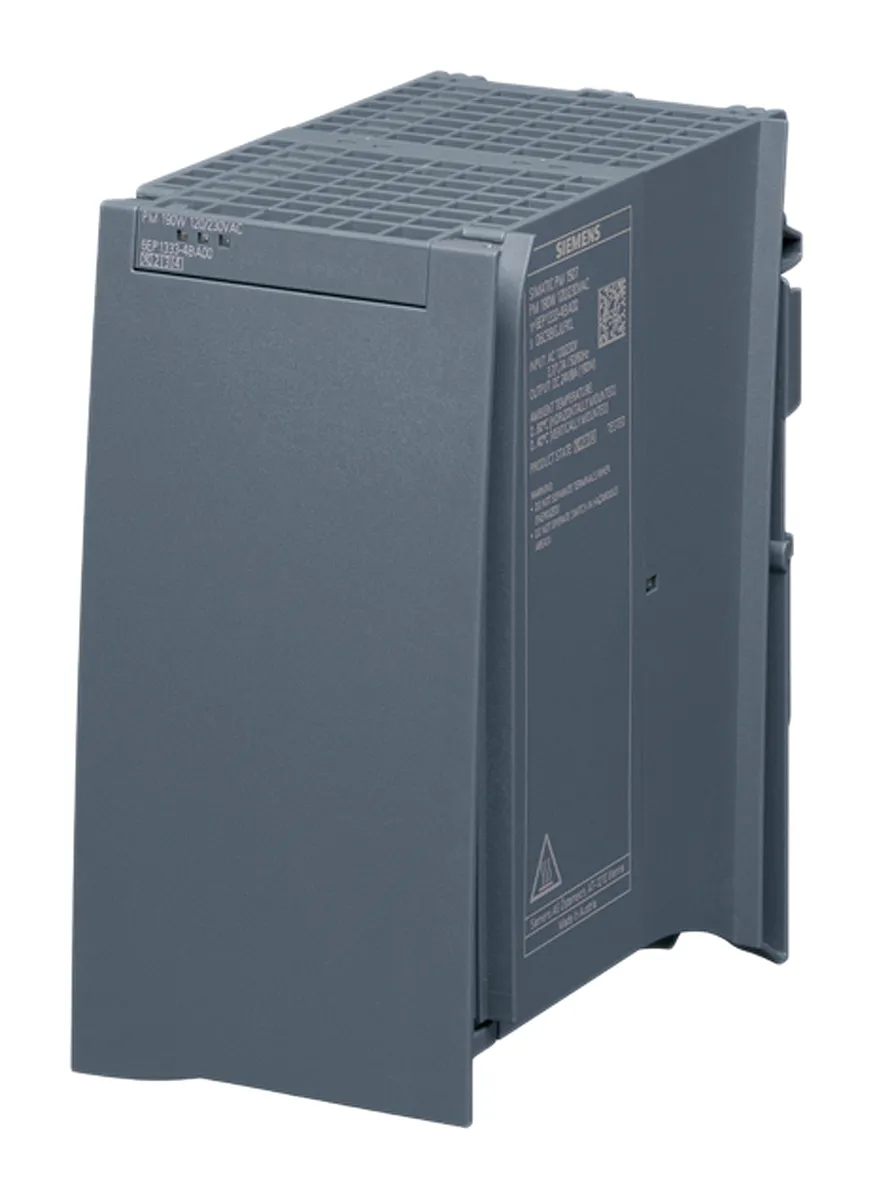

| Series | SIMATIC PM-1507 |
| Minimum Temperature | 0°C |
| Mounting Type | DIN Rail |
| Power Signal Conversion Type | AC-DC |
| Efficiency | 90% |
| Weight | 740g |
| Maximum Temperature | +60°C |
| Protection Features | Explosion Protection, Over Voltage Protection, Short Circuit Protection |
| Line Regulation | 0.1% |
| Input Frequency Range | 45 → 65Hz |
| Ripple And Noise | 150 mV Pk-Pk |
| Special Features | LED Display |
| Application | Industrial |
| Load Regulation | 0.1% |
| Maximum Input Current | 1.7 A @ 230 V, 3.7 A @ 120 V |
| Depth | 129mm |
