คุณสมบัติ | รายละเอียด |
|---|---|

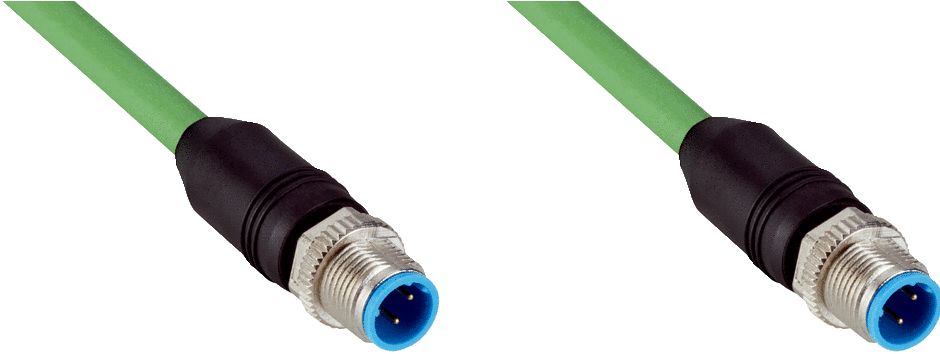

| Series | YM2D24 |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | Polyurethane PUR |
| Length | 3m |
| Sheath Colour | Green |
| Connector 1 Gender | Male |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 4 |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Orientation | Straight |
| Connector 2 | M12 |
| Connector 2 Gender | Male |
| Connector 2 Housing Gender | Male |
| Coding | D |
| Mounting Type | Plug-In |
| Shielding | Shielded |
| Shielded/Unshielded | Shielded |
| Current Rating | 4 A |
| Voltage Rating | 1.5 kV |
| IP Rating | IP65, IP66K, IP67 |
| Cable Shape | Round |
| Standards Met | UL |
| Minimum Operating Temperature | -30°C |
| American Wire Gauge | 22 |
| Outer Diameter | 6.7mm |
| Connector 1 Housing Gender | Male |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -30 - 70 °C |
7000-40021-6140500
79 3434 17 04
RSC RKC 572-5M
