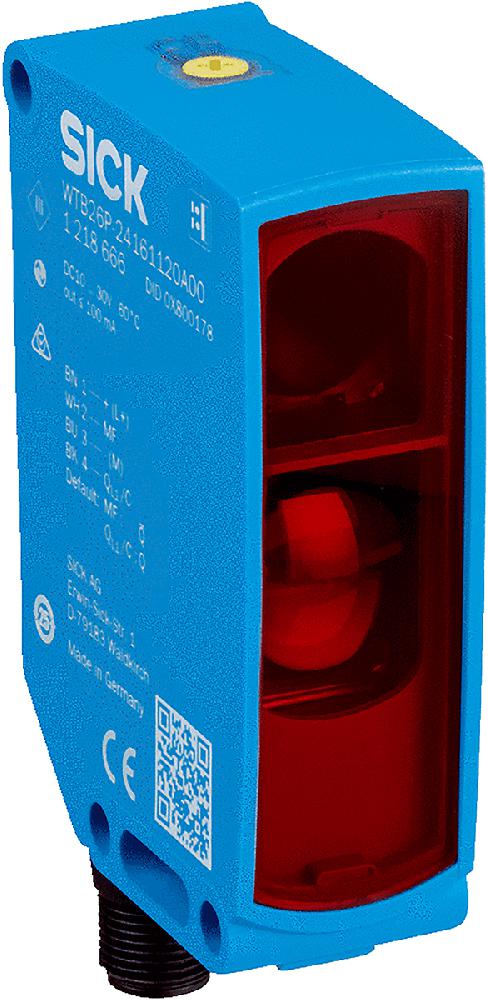

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
| Sensor Style | Block |
| Detection Type | Background Suppression |
| Detection Range | 10 mm → 1.6 m |
| Output Type | NPN/PNP |
| Electrical Connection | M12 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 4 Pin Connector |
| Light Source | LED |
| IP Rating | IP66, IP67 |
| Maximum Current | 100 mA |
| Response Time | <500 μs |
| Housing Material | Plastic, Vistal |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Panel Mount |
| Standards Met | CE Certified, cULus Recognized, UL NRKH.E181493, UL NRKH7.E181493 |
| Maximum Operating Temperature | +60°C |
| Series | W26 |
