คุณสมบัติ | รายละเอียด |
|---|---|
| Sensor Style | Rectangular |
| Detection Type | Retroreflective |
| Detection Range | 4 m |
| Output Type | PNP |
| Switching Mode | Light / Dark switching |
| Electrical Connection | Male Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | M12 4 Pin Connector |
| Light Source | Pin Point LED |
| IP Rating | IP66, IP67 |
| Maximum Current | 100 mA |
| Interface | COM Port |
| Response Time | 100 μs |
| Minimum Operating Temperature | -40°C |
| Housing Material | Metal |
| Mounting Type | Threaded |

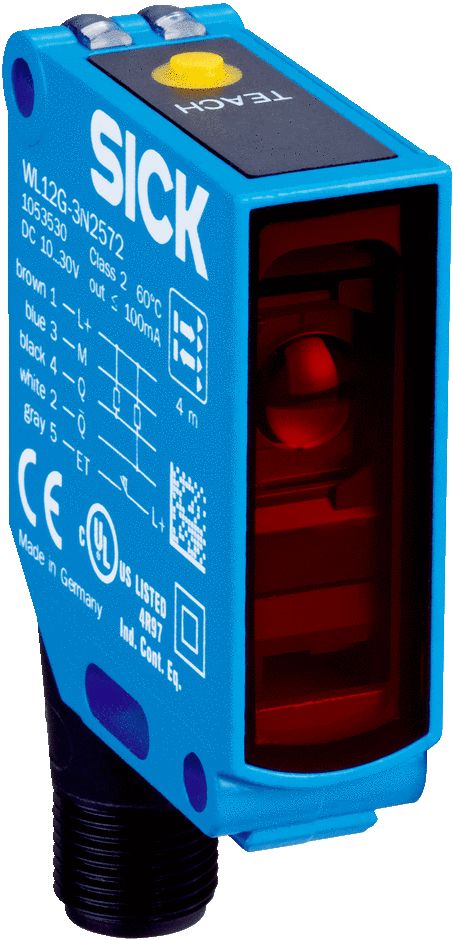

| Series | WL12G |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, UL |
| Thread Size | M4 |
