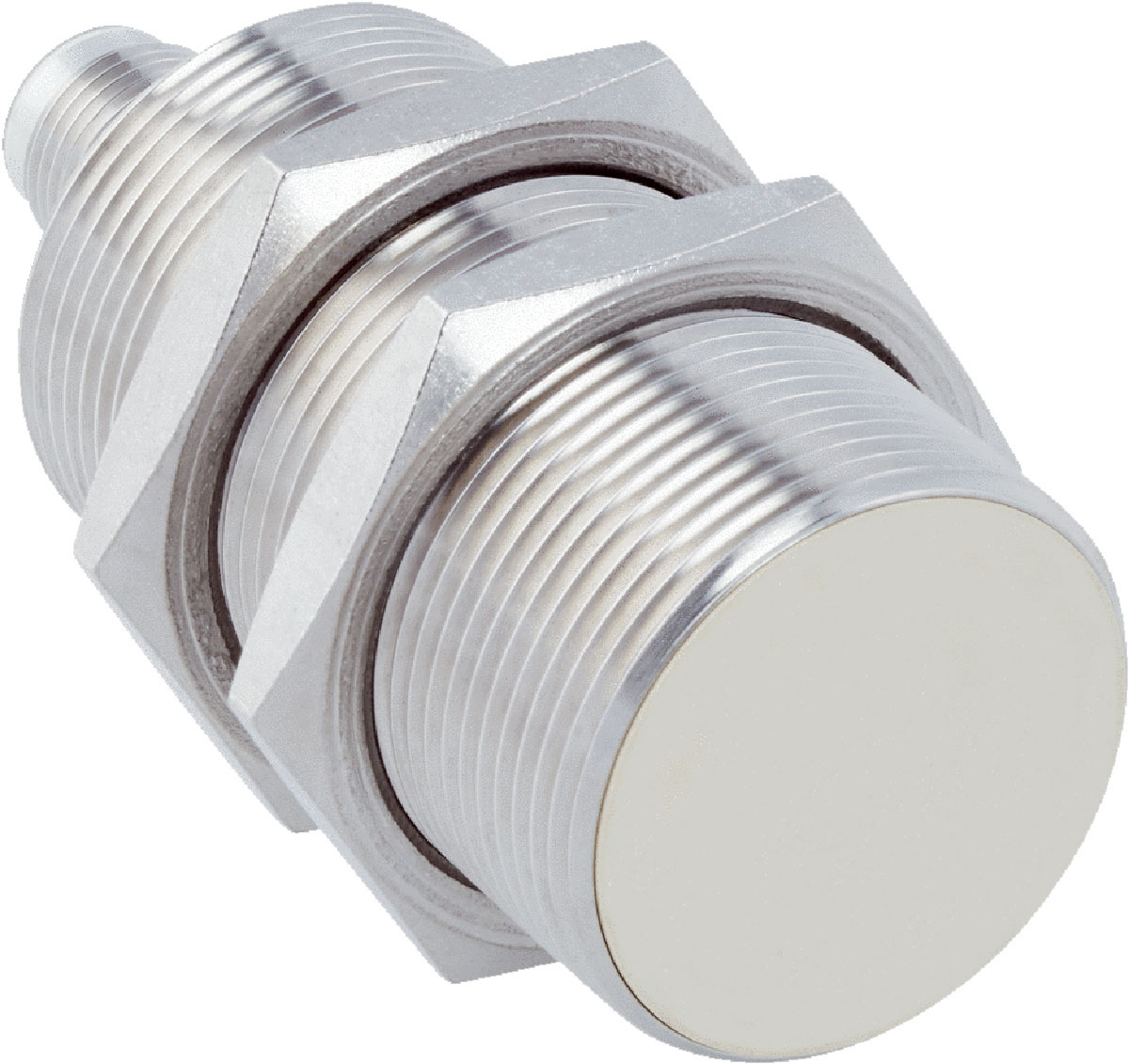

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Sensor Technology | Inductive |
| Thread Size | M30 x 1.5 |
| Body Style | Barrel |
| Output Type | PNP |
| Detection Range | 20 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 70.2mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non-Flush |
| Switching Current | 200 mA |
| IP Rating | IP68, IP69K |
| Housing Material | Stainless Steel, V4A |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -40°C |
| Shielding | Unshielded |
| Maximum Switching Frequency | 500Hz |
| Reverse Polarity Protection | Yes |
| Standards Met | CE Certified, cULus Listed, EN 60947-5-2, FDA, UL E181493 |
| Maximum Operating Temperature | +100°C |
