คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 120V ac |
| Contact Configuration | DPST-C/O |
| Mounting Type | Plug In |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V dc |
| Length | 13mm |
| Coil Resistance | 6300Ω |
| Coil Power | 820mW |
| Standards Met | CE, CSA, CULus, cURus File E173076 CCN NRNT2, IEC/EN 61810-1, NRNT7, NRNT8, UL |
| Contact Material | Silver Alloy |
| Better World Verification | Green Premium |
| Life | 10000000 cycles |
| Height | 30.6mm |
| Better World Product | Yes |

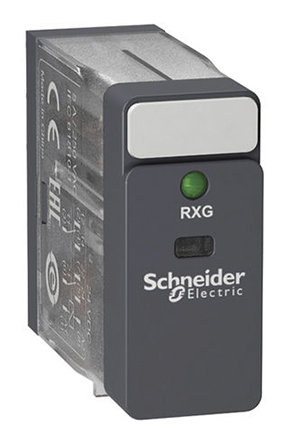

| Series | Harmony Relay RXG |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 5kV ac |
| Depth | 37.1mm |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Power DC | 150 W |
| Maximum Switching Power AC | 1.25 kVA |
| Application | Industrial |
