คุณสมบัติ / Specifications
คุณสมบัติ | รายละเอียด |
Power Rating | 15 kW, 18.5 kW |
Phase | 3 |
Supply Voltage | 400 V ac |
Current Rating | 27.7 A, 33.4 A |
For Use With | Asynchronous Motors, Synchronous Motors |

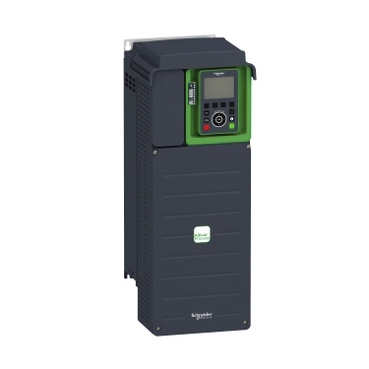

Series | ATV930 |
Field Bus Communication Type | Profibus |
IP Rating | IP21 |
Output Frequency | 0.1 → 599Hz |
STO | Yes |
Drive Type | Variable Speed |
Mounting Type | Wall Mount |
Filter Included | Yes |
Control Panel | Yes |
Overall Width | 235mm |
Standards Met | EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, UL 508C |
Better World Product | Yes |
Overall Depth | 545.9mm |
Better World Verification | Green Premium |
Function | Motor Control |
Overall Length | 211mm |
Special Features | Earth Continuity, Ease of Installation, Maintenance of the Variable Speed Drive Fan (Kit Sizes 4 and 5), Strength, Tightness |
