คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Power Rating | 1.1 kW |
| Phase | 1 |
| Supply Voltage | 200 → 240 V ac |
| Current Rating | 13.6 A @ 200 V ac |
| Output Frequency | 0.1 → 599Hz |
| For Use With | Single Phase Asynchronous & Synchronous Motors |
| Ambient Temperature | -10 → +50 (without Derating) °C, +50 → +60 (with Derating) °C |
| Overall Width | 245mm |
| Overall Length | 60mm |
| Overall Depth | 325mm |
| Control Panel | Yes |
| Drive Type | Adjustable Frequency |
| Field Bus Communication Type | CANOpen, DeviceNet, EtherCAT, EtherNet/IP, Modbus TCP, Powerlink, Profibus DP, Profinet, RJ45 |
| Filter Included | Yes |
| IP Rating | IP20 |
| Standards Met | CE, CSA, CUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL |
| Function | Motor Control |

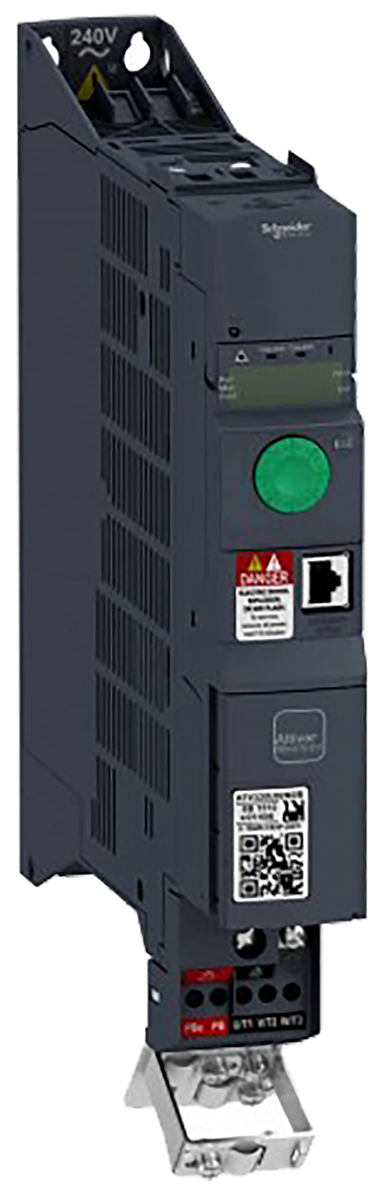

| Series | ATV320 |
| Special Features | Enhanced Automation Capabilities, Even at Low Speed & Dynamic Accuracy for Start/Stop Application, Open-Loop Motor Control Combined, Variable Speed Drive Improves Machine Effectiveness |
| Mounting Type | DIN Rail |
