คุณสมบัติ | รายละเอียด |
|---|---|

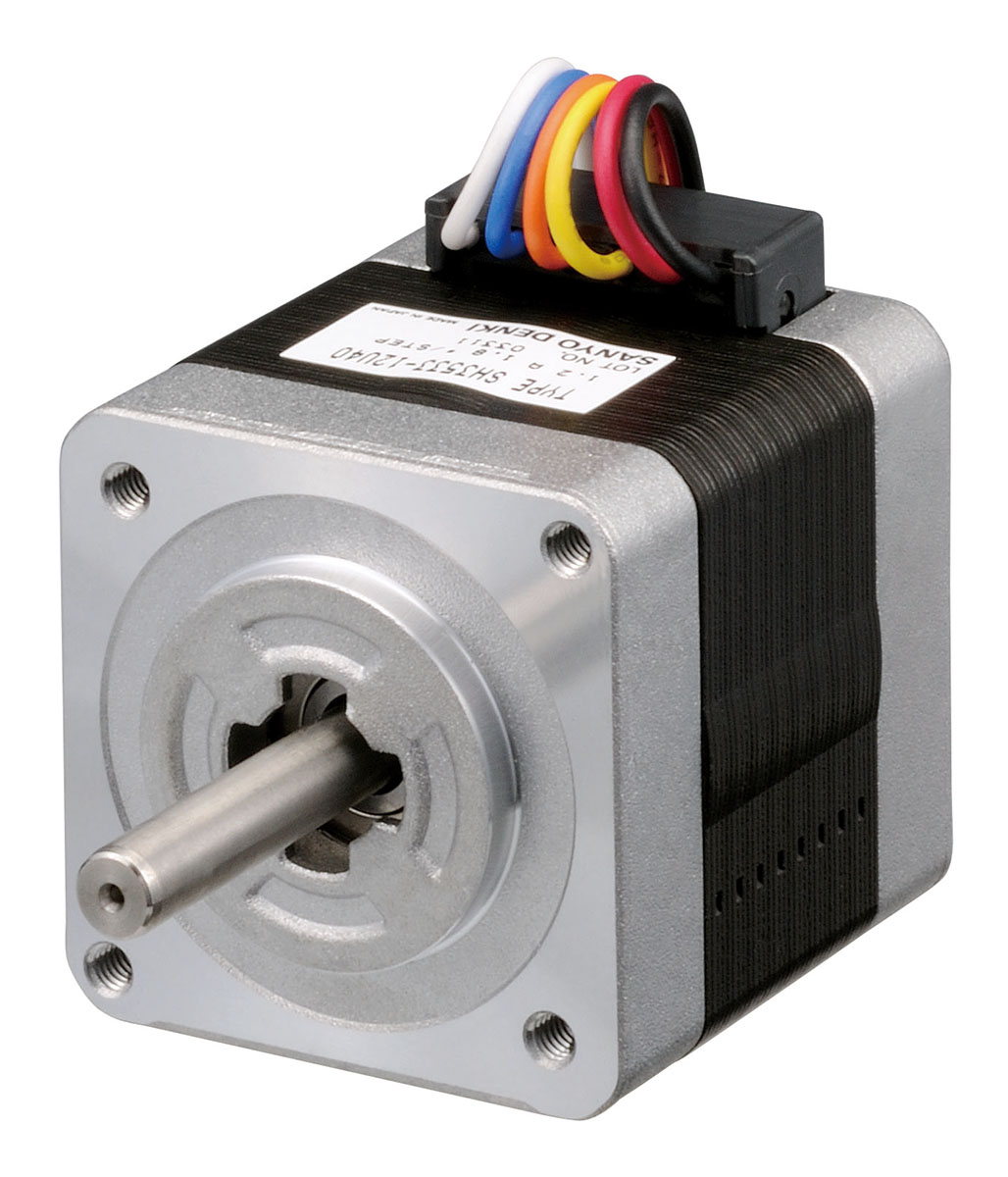

| Stepper Motor Type | Hybrid, Single Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.12Nm |
| Number Of Wires | 6 |
| Supply Voltage | 24 V |
| Frame Size | 35 x 35mm |
| Shaft Diameter | 5mm |
| Current Rating | 1.2 A |
| Winding Arrangement | Unipolar |
| Shaft Length | 20mm |
| Depth | 35mm |
| Resistance Per Phase | 2.4Ω |
| Standards Met | CE, UL, TUV, RoHS Compliant |
| Series | SH3533 |
SM2564C60B41
EMMS-ST-42-S-SE-G2
SF2422-10B41
