คุณสมบัติ | รายละเอียด |
|---|---|

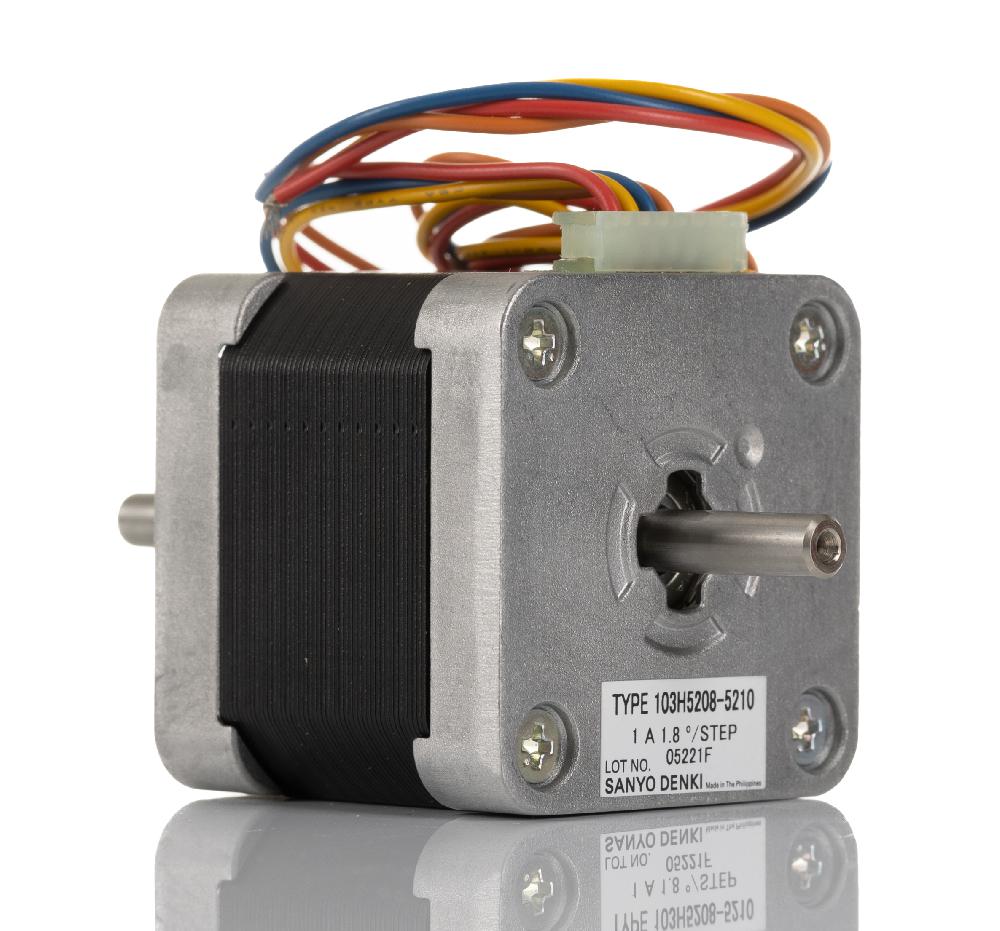

| Stepper Motor Type | Hybrid, Double Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.39Nm |
| Number Of Wires | 4 |
| Supply Voltage | 24 V |
| Frame Size | 42 x 42mm |
| Shaft Diameter | 5mm |
| Current Rating | 1 A |
| Winding Arrangement | Bipolar |
| Shaft Length | 24mm |
| Depth | 40.5mm |
| Resistance Per Phase | 4.1Ω |
| Series | 103H5 |
| Standards Met | CE, UL, TUV, RoHS Compliant |
| Maximum Output Torque | 0.39 Nm |
103H5205-5240
103H5208-0440
103H7823-0440
103H5205-0440
