คุณสมบัติ | รายละเอียด |
|---|---|
| Port Connection | G 1/4 |
| Maximum Operating Pressure | 10 bar |
| Manufacturer Series | AW |
| Drain Type | Automatic |
| Filtration Size | 5µm |
| Pressure Gauge Port | G 1/8 |
| Pressure Gauge Port Thread Size | 1/8 in |
| Port Connection Thread Size | 1/4 in |
| Maximum Ambient Operating Temperature | +60°C |
| Minimum Process Operating Temperature | -5°C |
| Minimum Ambient Operating Temperature | -5°C |
| Bowl Material | Polycarbonate |
| Maximum Process Operating Temperature | +60°C |
| Port Connection Thread Standard | G |
| Process Operating Temperature Range | -5 → +60°C |
| Proof Pressure | 1.5MPa |
| Ambient Operating Temperature Range | -5 → +60°C |
| Pressure Gauge Port Thread Standard | G |

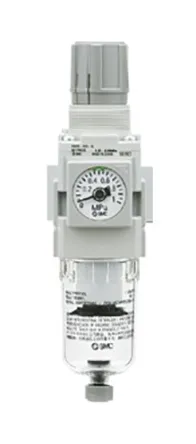

AW30-F02BE-B
AC30D-03G-D
AW30-F02EH-B
LFR-3/4-D-MAXI
LFR-3/8-D-5M-MINI-A
MS6-LFR-3/8-D6-ERM-AS
LFR-1-D-MAXI-A
