คุณสมบัติ | รายละเอียด |
|---|---|

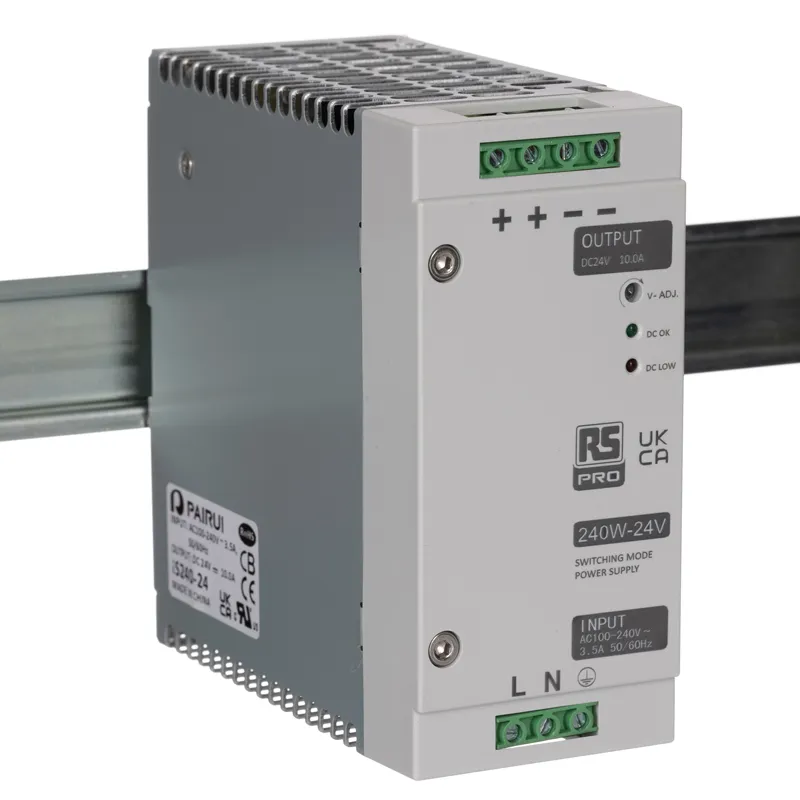

| Type | Switched Mode |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Input Voltage | 230V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 10A |
| Power Rating | 240W |
| Dimensions | 60 x 130 x 125mm |
| Depth | 125mm |
| Height | 130mm |
| Width | 60mm |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
| Standards Met | CB, CE, cUL, cULus Recognised, FCC, UL |
| Minimum Temperature | -25°C |
| MTBF | 230kh |
| Output Voltage Adjustment Range | 22 - 28V |
| Load Regulation | 3% |
| Special Features | 100% Full Load Burn-In Test, 3-Years Warranty, Compact Size, Cooling by Free Air Convection, LED Indicator for DC Low, LED Indicator for DC Power On |
