คุณสมบัติ | รายละเอียด |
|---|---|

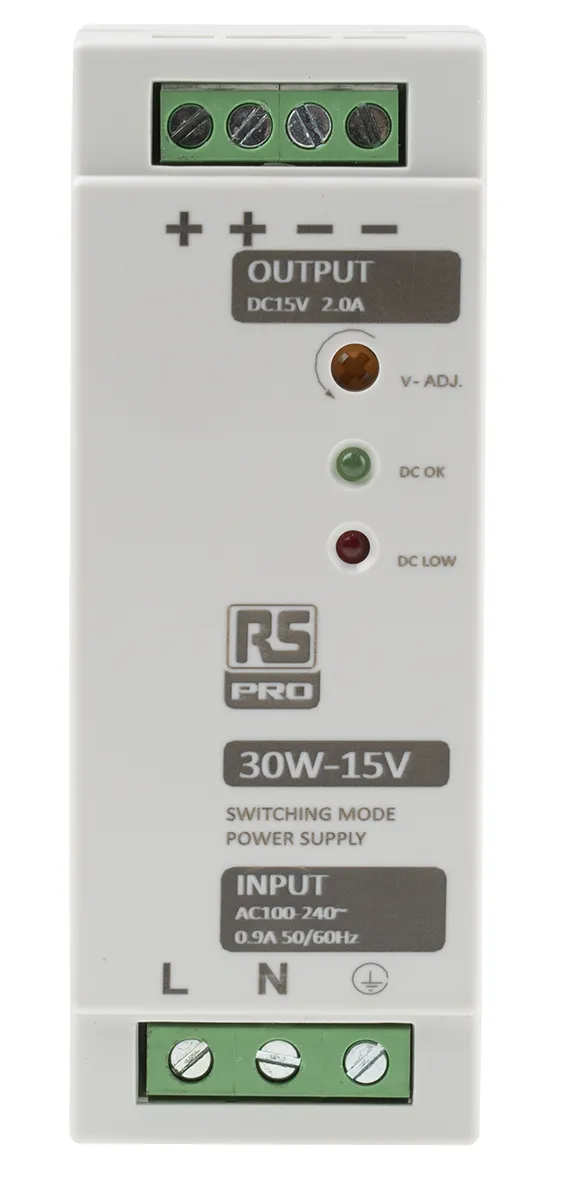

| Type | Switched Mode |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Input Voltage | 230V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 15V dc |
| Output Current | 2A |
| Power Rating | 30W |
| Dimensions | 36 x 95 x 108mm |
| Depth | 108mm |
| Width | 36mm |
| Height | 95mm |
| Standards Met | CB, CE, cUL, cULus Recognised, FCC, UL |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| MTBF | 200kh |
| Special Features | 100% Full Load Burn-In Test, 3-Years Warranty, Compact Size, Cooling by Free Air Convection, LED Indicator for DC Low, LED Indicator for DC Power On |
| Load Regulation | 1% |
| Maximum Temperature | +70°C |
