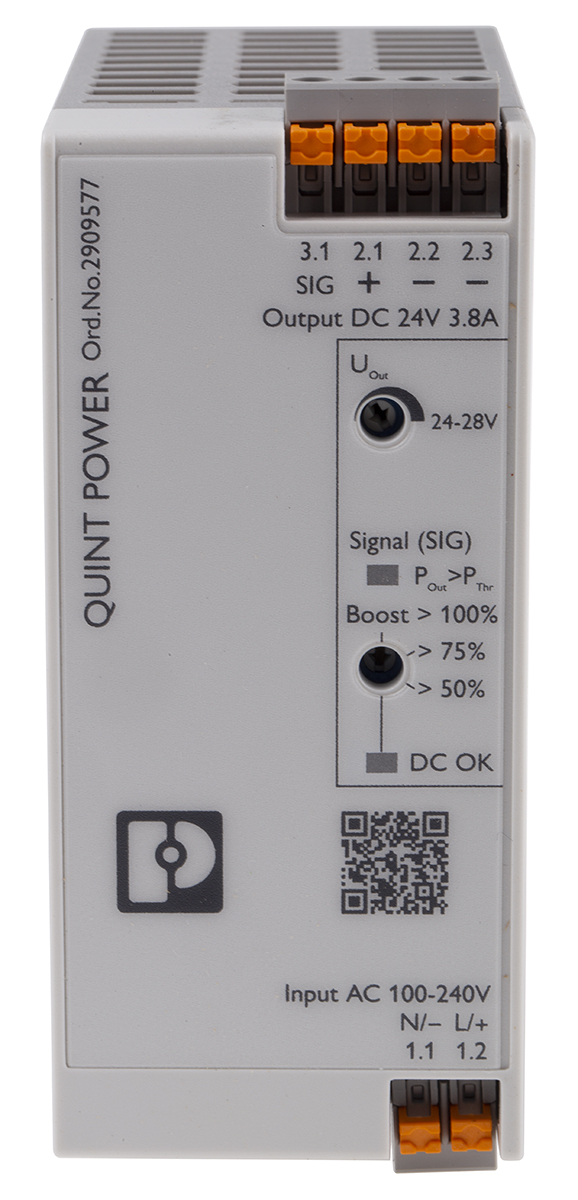

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Minimum Input Voltage | 100 V ac, 110 V dc |
| Input Voltage | 230V ac |
| Maximum Input Voltage | 240 V ac, 250 V dc |
| Output Voltage | 24 → 28V dc |
| Minimum Output Voltage | 24V dc |
| Maximum Output Voltage | 28V dc |
| Output Current | 3.8 A |
| Power Rating | 90W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 106mm |
| Dimensions | 45 x 90 x 106mm |
| Width | 45mm |
| Input Frequency Range | 60Hz |
| Maximum Temperature | +70°C |
| Protection Features | Transient Surge Protection |
| Maximum Input Current | 1 A @ 100 V ac |
| Depth | 90mm |
| Efficiency | 93.7% |
| Weight | 0.29kg |
| Input Electrical Phase | 1 |
| Mounting Type | DIN Rail |
| Ripple And Noise | 45mV Pk-Pk |
| MTBF | 271000 h @ 60 °C, 690000 h @ 40 °C, 1272000 h @ 25 °C |
| Series | QUINT4 |
| Minimum Temperature | -25°C |
| Allowed Circuit Configurations | Parallel, Series |
| Application | Industrial |
