คุณสมบัติ | รายละเอียด |
|---|---|

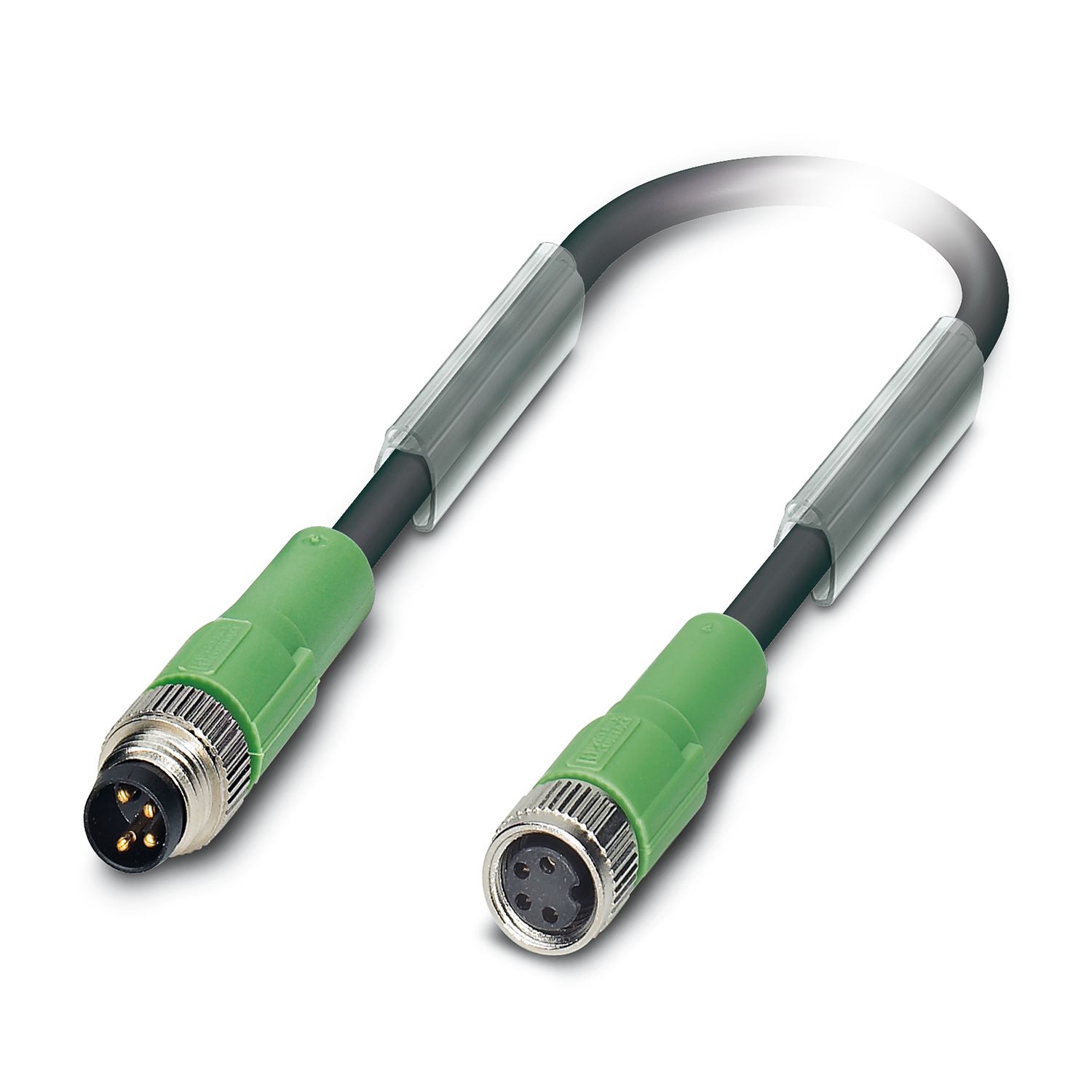

| Series | SAC-4P-M 8MS/3.0-PUR/M 8FS |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 4 |
| Length | 3m |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M8 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Male |
| Connector 2 | M8 |
| Connector 2 Housing Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Gender | Female |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Shielding | Unshielded |
| Voltage Rating | 300 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Insulation Material | PP |
| Conductor Material | CuSn |
| Minimum Bend Radius | 20 mm |
| Core Strands | 4 x 0.25 mm² |
| Conductor Resistance | 5 mΩ |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 3.95mm |
| Connector 1 Housing Gender | Female |
| Operating Temperature Range | -40 → +80 °C |
| Maximum Operating Temperature | +80°C |
| Cable Shape | 4 Twisted Pair |
| Oil Resistant | Yes |
| Standards Met | UL |
| Minimum Operating Temperature | -40°C |
| Size of Strands | 32 x 0.10 mm |
