คุณสมบัติ | รายละเอียด |
|---|---|

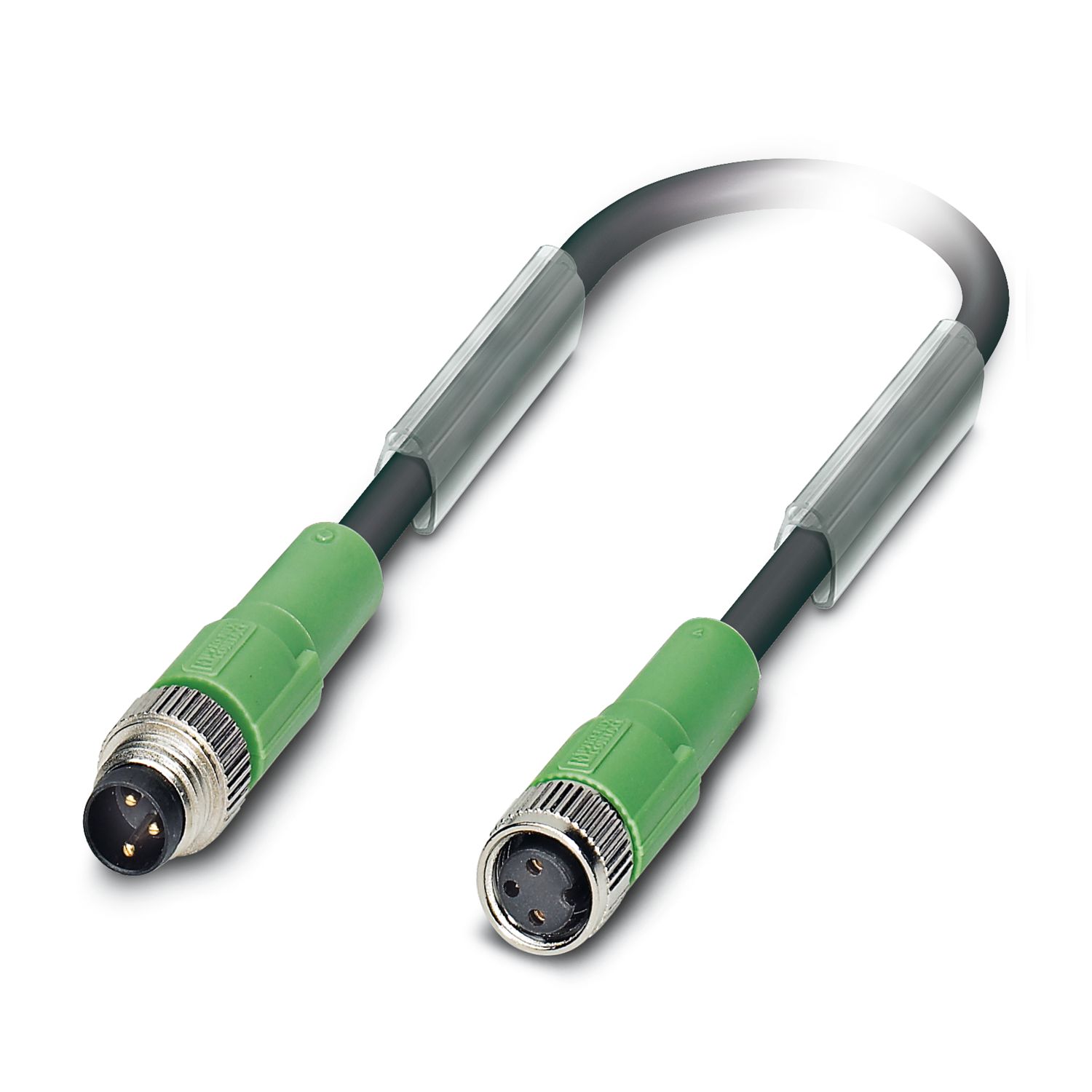

| Series | SAC-3P-M 8MS/1.5-PUR/M 8FS |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 3 |
| Length | 1.5m |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Straight |
| Connector 1 | M8 |
| Connector 2 | M8 |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 3 |
| Connector 2 Orientation | Straight |
| Connector 2 Housing Gender | Male |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Shielding | Unshielded |
| Voltage Rating | 300 V ac |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Maximum Operating Temperature | +80°C |
| American Wire Gauge | 24 AWG |
| Connector 1 Housing Gender | Female |
| Outer Diameter | 3.6mm |
| Operating Temperature Range | -40 - +80 °C |
| Conductor Resistance | 78 Ω/km |
| Insulation Material | PP |
| Fire Behaviour | Self-extinguishing |
| Minimum Operating Temperature | -40°C |
| Conductor Material | Bare Cu litz wires |
| Standards Met | UL |
| Oil Resistant | Yes |
| Minimum Bend Radius | 18 (Fixed) mm, 36 (Flexible) mm |
