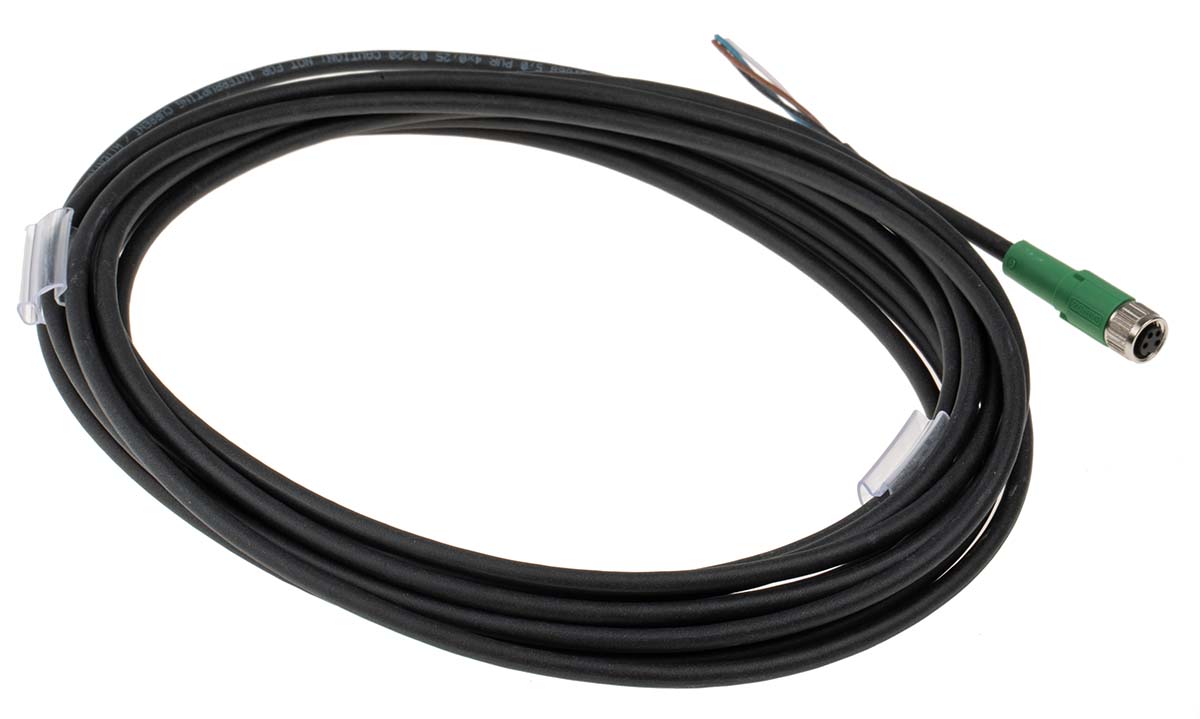

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
| Series | SAC-4P- 5.0-PUR/M 8FS |
| Cross Sectional Area | 0.25 mm² |
| Sheath Material | PUR |
| Length | 5m |
| Sheath Colour | Black |
| Connector 1 | M8 |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 30 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Insulation Material | PP |
| American Wire Gauge | 24 AWG |
| Conductor Material | Bare Cu litz wires |
| Operating Temperature Range | -25 → +90 °C |
| Minimum Operating Temperature | -25°C |
| Standards Met | cUL, cULus, EAC, UL |
| Conductor Resistance | 78 Ω/km |
| Connector 1 Housing Gender | Female |
| Maximum Operating Temperature | +90°C |
