1522105
รูปภาพประกอบอาจเป็นรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ราคา / Price : Each
1,050.00 THB

จำนวนในสต็อก : 17 | in stock
มีของพร้อมจัดส่งภายใน 7-10 วันทำการ (In stock for delivery within 7-10 working days)

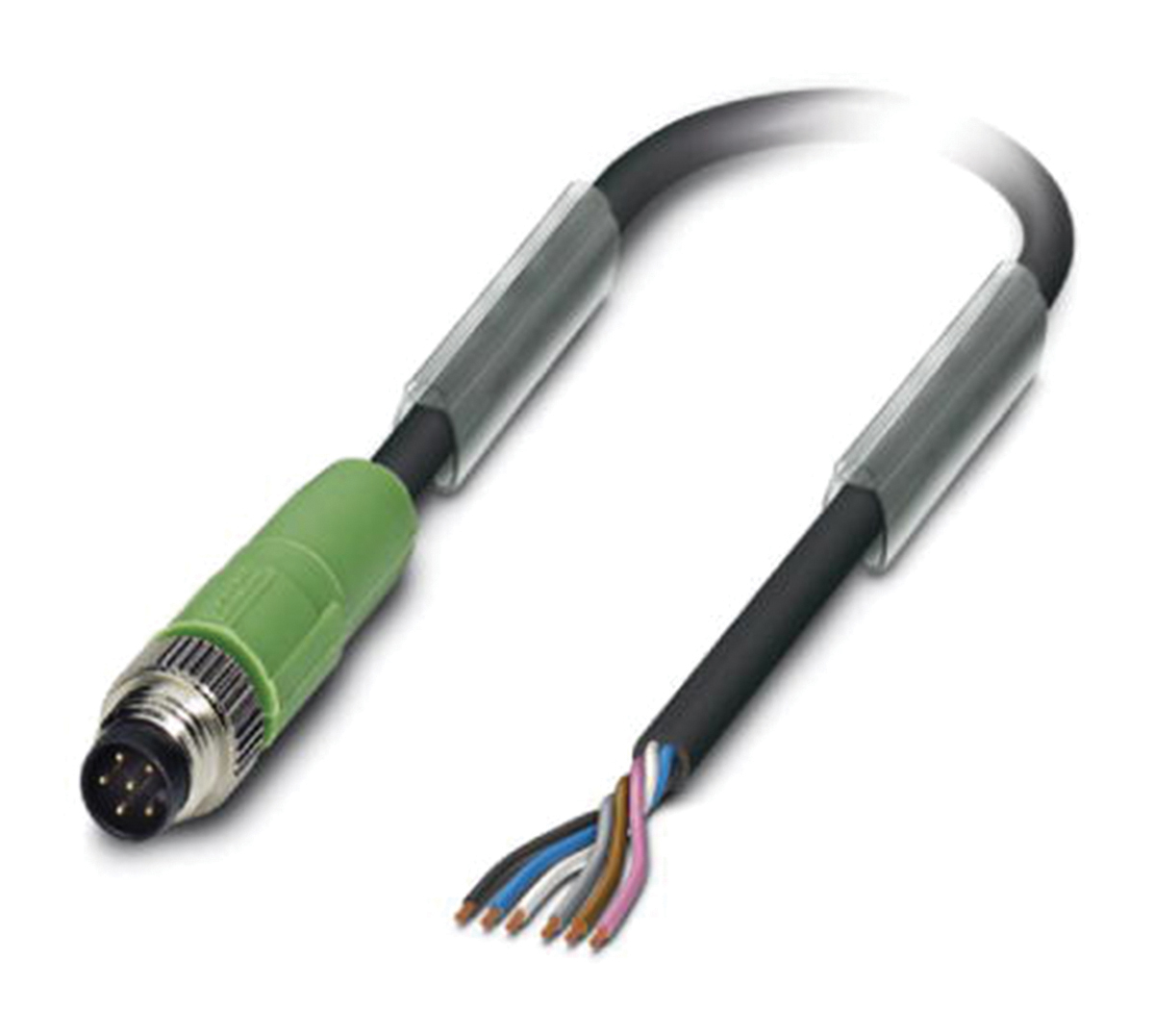

This cable assembly from Phoenix Contact is used to connect sensors and actuators to industrial machinery and equipment.

Add Line
สแกนคิวอาร์โค้ดแอดไลน์ เพื่อสอบถามข้อมูลเพิ่มเติมจากฝ่ายขาย
คุณสมบัติ
รายละเอียด
SeriesSAC
Cross Sectional Area0.25 mm²
Number of Cores6
Sheath ColourBlack/Grey
Sheath MaterialPolyurethane
Length3m
Connector 1M8
Connector 1 GenderMale
Connector 1 Number of Contacts6
CodingA
Shielded/UnshieldedUnshielded
Voltage Rating30 V
Current Rating4 A
IP RatingIP65, IP67, IP68
Standards MetcUL, cULus, EAC, IEC 61076-2-104, UL
Minimum Operating Temperature-5 (Flexible) °C, -40 (Fixed) °C
Fire BehaviourHalogen Free
Conductor Resistance78 O/km
American Wire Gauge24 AWG
Outer Diameter5mm
Connector 1 Housing GenderMale
Insulation MaterialPP
Maximum Operating Temperature+80°C
Conductor MaterialBare Cu litz wires
Oil ResistantYes
