คุณสมบัติ | รายละเอียด |
|---|---|

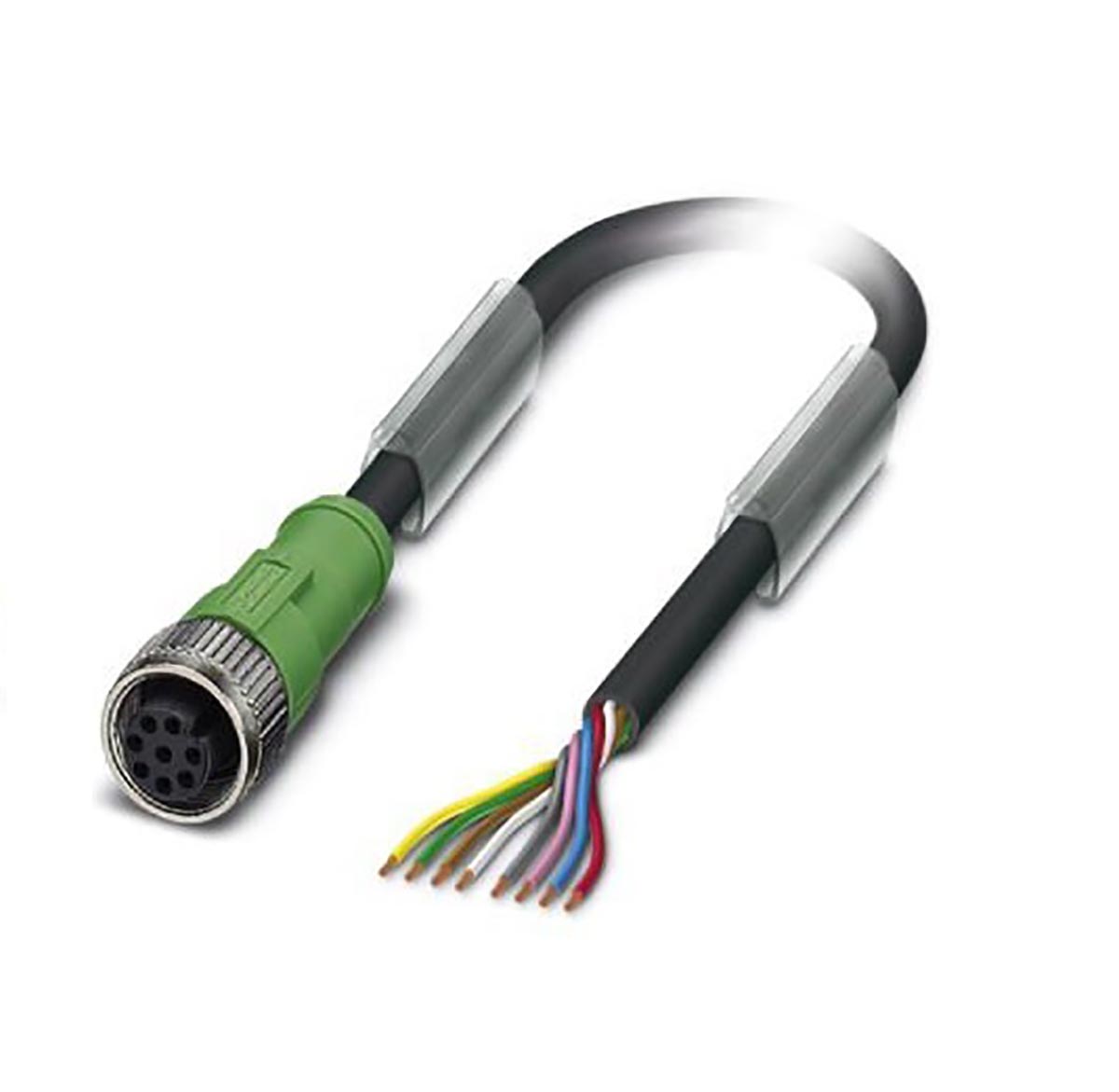

| Series | SAC-8P |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 8 |
| Length | 5m |
| Sheath Material | PUR |
| Sheath Colour | Black/Grey |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 8 |
| Connector 2 | Unterminated |
| Coding | A |
| Mounting Type | Plug-In |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 30 V |
| Current Rating | 2 A |
| IP Rating | IP65, IP67, IP68 |
| Outer Diameter | 5.9mm |
| Connector 1 Housing Gender | Female |
| American Wire Gauge | 24 AWG |
| Operating Temperature Range | -40 → +80 °C |
| Maximum Operating Temperature | +80°C |
| Conductor Resistance | 78 O/km |
| Insulation Material | PP |
| Characteristic Impedance | 100 Ω |
| Minimum Operating Temperature | -40°C |
| Oil Resistant | Yes |
| Cable Shape | Twisted Pair |
| Minimum Bend Radius | 8 mm |
| Fire Behaviour | Halogen Free |
| Standards Met | cUL, cULus, EAC, UL |
| Conductor Material | Copper |
