คุณสมบัติ | รายละเอียด |
|---|---|

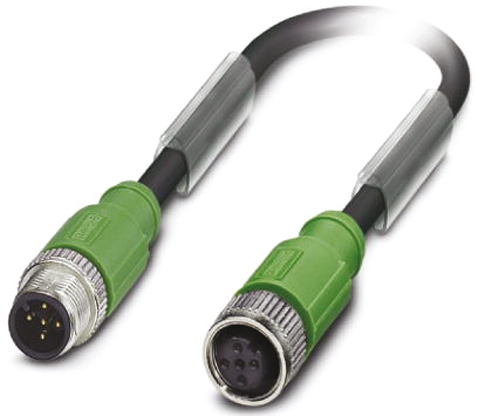

| Series | SAC-5P-M12MS/ 3.0-PUR/M12FS SH |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | PUR |
| Length | 3m |
| Sheath Colour | Black |
| Connector 1 Number of Contacts | 5 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Housing Gender | Male |
| Connector 2 Number of Contacts | 5 |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 48 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP69K |
| Cable Shape | Twisted Pair |
| Standards Met | IEC 61076-2-101 |
| Minimum Operating Temperature | -5 (Flexible) °C, -25 (Fixed) °C |
| Conductor Material | Copper |
| Connector 1 Housing Gender | Female |
| Minimum Bend Radius | 26 (Fixed) mm, 52 (Flexible) mm |
| Fire Behaviour | Halogen Free |
| Outer Diameter | 5.25mm |
| American Wire Gauge | 22 AWG |
| Conductor Resistance | 57 O/km |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +80°C |
| Insulation Material | PP |
