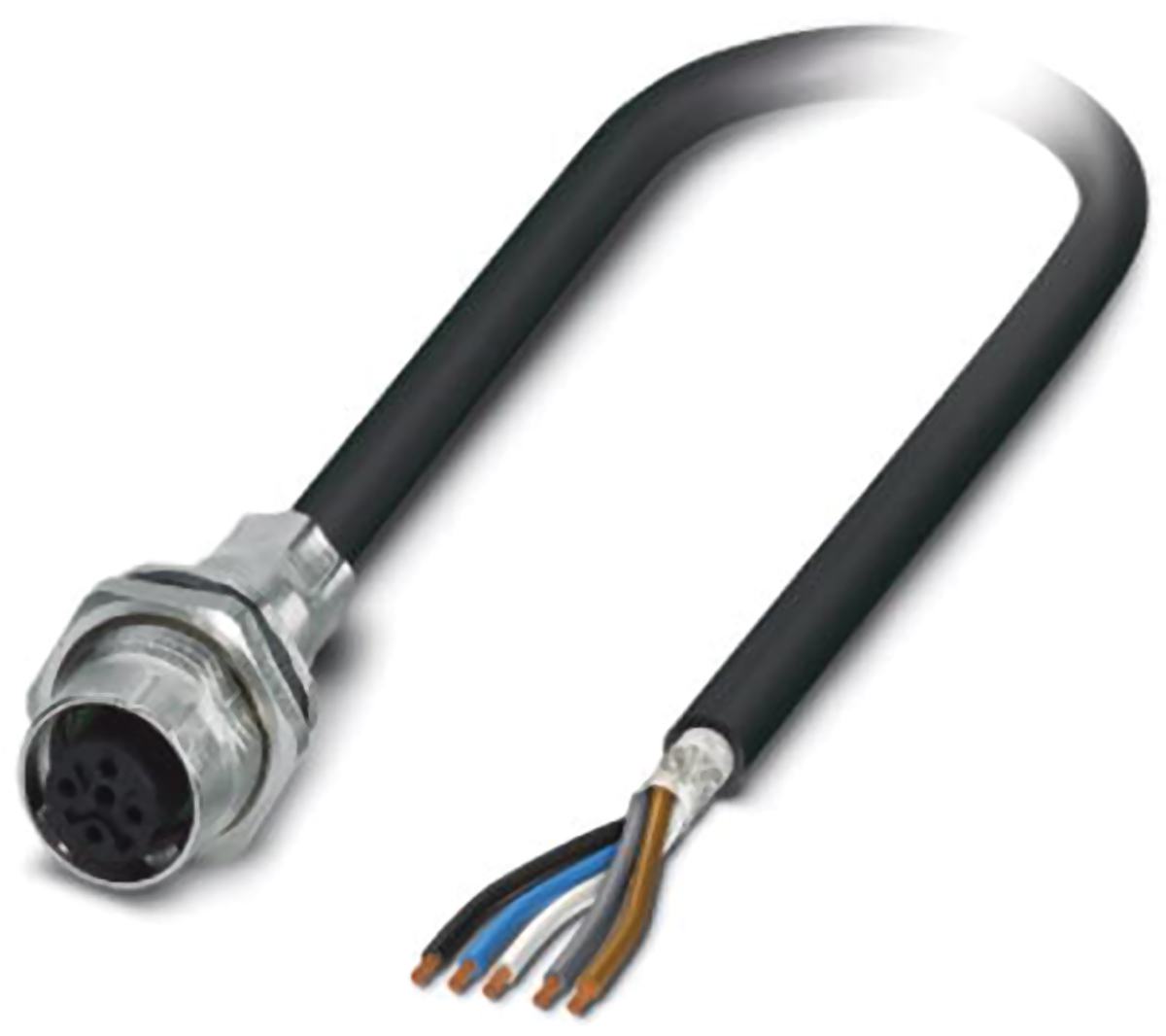

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | SACCBP |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 5 |
| Length | 2m |
| Sheath Colour | Black/Grey |
| Sheath Material | PVC |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 5 |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Connector 2 Orientation | Straight |
| Coding | A |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Voltage Rating | 60 V |
| Current Rating | 4 A |
| IP Rating | IP67 |
| Maximum Operating Temperature | +85°C |
| Conductor Material | Bare Cu litz wires |
| Cable Shape | Round |
| Oil Resistant | Yes |
| Standards Met | cULus |
| Minimum Operating Temperature | -25°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | Polyurethane |
| Conductor Resistance | 57 O/km |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 5.25mm |
| Connector 1 Housing Gender | Female |
| Operating Temperature Range | -25 - +85 °C |
T41611B9L25-003
DOL-1204-L25MNI
46376 RKWT 4-225/20 M
XS5H-D421-D80-F
XZCP1164L25
