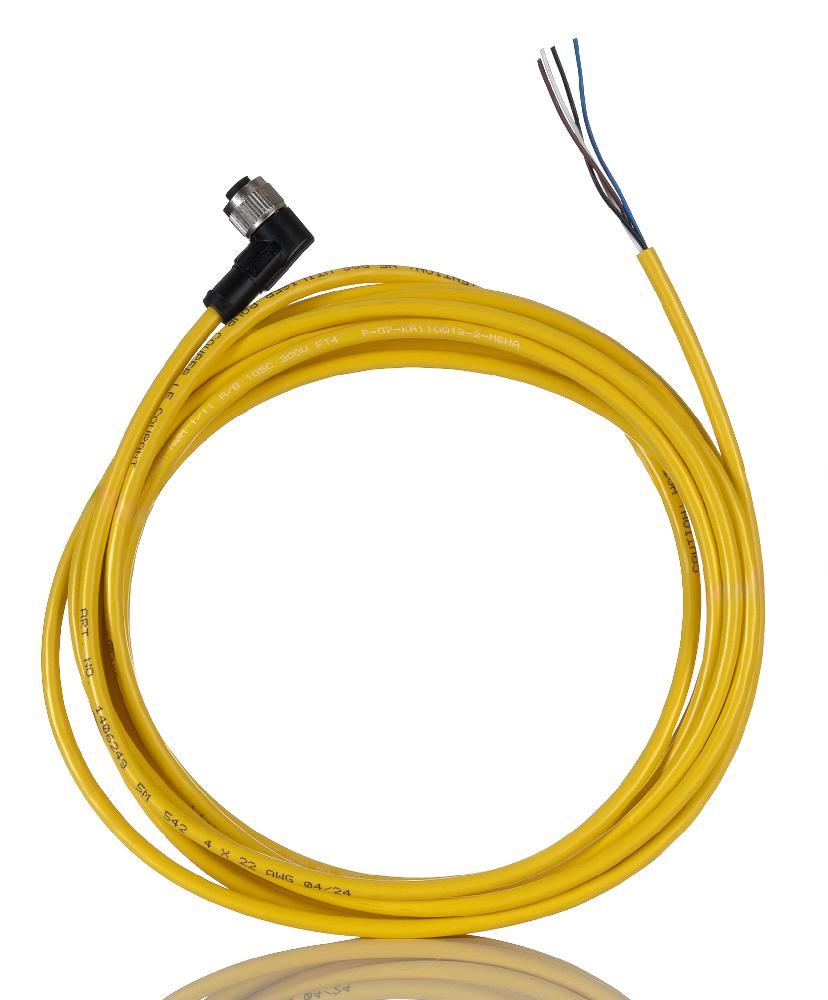

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | SAC-4P- 5.0-542/ FR SCO BK |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Colour | Yellow |
| Length | 5m |
| Sheath Material | PVC |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Right Angle |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Fire Behaviour | Self-extinguishing |
| Minimum Operating Temperature | -30°C |
| Cable Shape | Round |
| Outer Diameter | 5mm |
| Conductor Resistance | 50.5 Ω/km |
| American Wire Gauge | 22 AWG |
| Standards Met | UL |
| Insulation Material | PVC |
| Maximum Operating Temperature | +105°C |
| Conductor Material | Tin Plated Copper Litz Wires |
| Connector 1 Housing Gender | Female |
| Minimum Bend Radius | 8 x D |
| Operating Temperature Range | -25 → +90 °C |
