คุณสมบัติ | รายละเอียด |
|---|---|

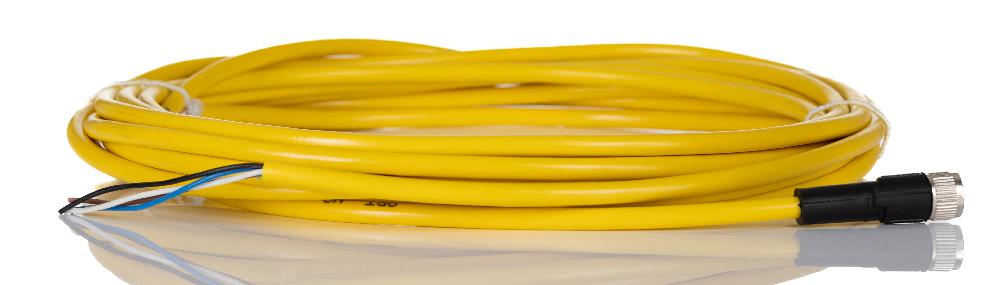

| Series | SAC-4P- 5.0-542/M8 FS BK |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 4 |
| Sheath Material | PVC |
| Sheath Colour | Yellow |
| Length | 5m |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 1 | M8 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 300 V |
| IP Rating | IP65 |
| American Wire Gauge | 24 AWG |
| Insulation Material | PVC |
| Conductor Resistance | 5 mΩ |
| Connector 1 Housing Gender | Female |
| Outer Diameter | 4.4mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80 °C |
| Minimum Bend Radius | 8 x D |
| Conductor Material | CuSn |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Self-extinguishing |
| Oil Resistant | No |
| Standards Met | EAC, UL 94 |
