คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Contact Configuration | DPDT |
| Number of Poles | 2 |
| Coil Resistance | 1.152 kΩ |
| Switching Current | 6A |
| Coil Power | 500mW |
| Maximum Switching Current AC | 6 A |
| Maximum Switching Current DC | 6 A |
| Maximum Switching Voltage DC | 30V |
| Maximum Switching Voltage AC | 440V |
| Terminal Type | Through Hole |
| Maximum Switching Power AC | 1.5 kVA |
| Minimum Operating Temperature | -40°C |

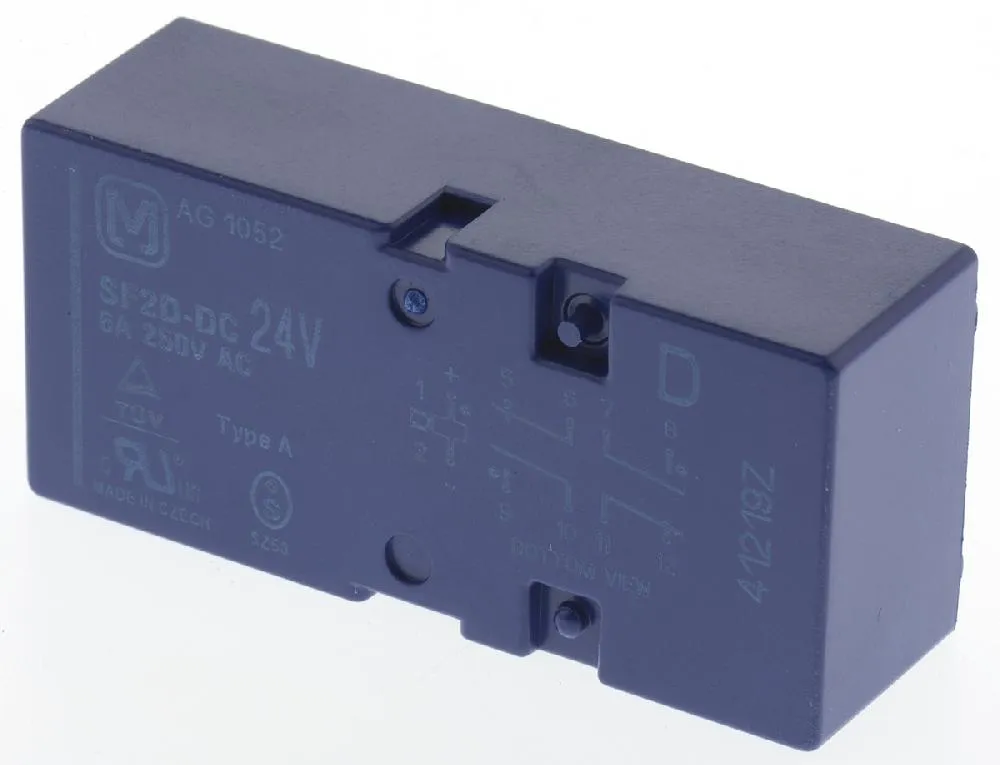

| Series | SF2D |
| Maximum Operating Temperature | +70°C |
| Isolation Coil To Contact | 2.5kV rms |
| Contact Material | Gold Plated |
| Depth | 25mm |
| Maximum Switching Power DC | 180 W |
| Height | 16mm |
| Length | 53.3mm |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
