คุณสมบัติ | รายละเอียด |
|---|---|

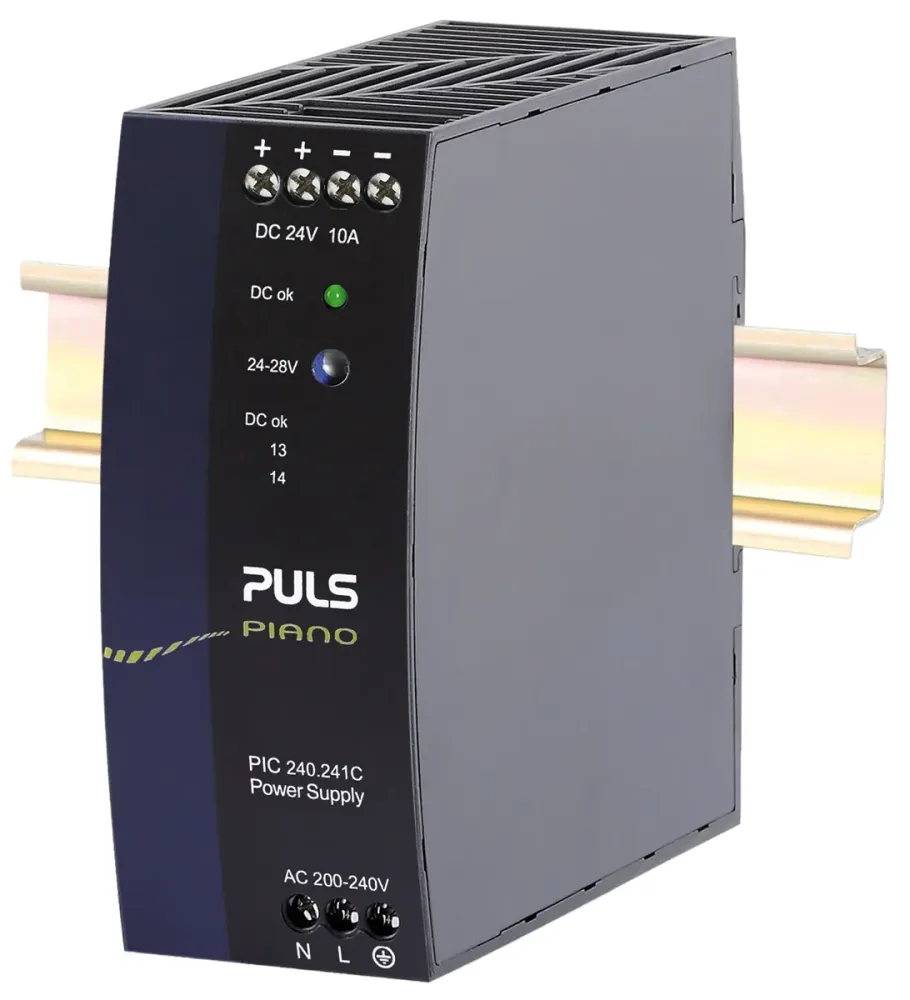

| Series | PIANO |
| Type | Switched Mode |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Input Voltage | 230V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 10A |
| Power Rating | 240W |
| Dimensions | 49 x 124 x 124mm |
| Width | 49mm |
| Depth | 124mm |
| Height | 124mm |
| Standards Met | CE Certified, cULus Listed, cULus Recognised, EN 50178, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-3, EN 61000-6-4, FCC, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 62103, IEC/CISPR 16-1-2, IEC/CISPR 16-2-1, LVD, MIL HDBK 217F, SEMI F47 0706, UL 508, UL 60950-1, VDE 0160 |
| Minimum Temperature | -10°C |
| Ripple And Noise | 100mV Pk-Pk |
| MTBF | 1588000h |
| Output Voltage Adjustment Range | 24 - 28V |
| Load Regulation | 150mV |
| Special Features | Compact Design, Cost Effective Design, DC OK Relay Contact |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
