คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Input Voltage | 230V ac |
| Minimum Input Voltage | 85 V ac, 90 V dc |
| Maximum Input Voltage | 264 V ac, 350 V dc |
| Output Voltage | 24 V dc |
| Minimum Output Voltage | 21.6V dc |
| Maximum Output Voltage | 28V dc |
| Output Current | 5 A |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Dimensions | 55 x 92.3 x 90mm |
| Width | 55mm |
| Maximum Input Current | 1.2A |
| Depth | 92.3mm |
| Power Signal Conversion Type | AC/DC-DC |
| Maximum Temperature | +70°C |
| Protection Features | Over Load Protection, Over Voltage Protection |
| Allowed Circuit Configurations | Parallel, Series |
| Weight | 400g |
| Output Voltage Adjustment Range | 21.6 → 28V |
| Mounting Type | DIN Rail Mount |
| Efficiency | 92 |
| Line Regulation | 0.5% |
| Minimum Temperature | -40°C |
| Ripple And Noise | 150mV Pk-Pk |
| Load Regulation | 1.5% |
| Holdup Time | 35ms |
| Input Frequency Range | 47 → 450Hz |

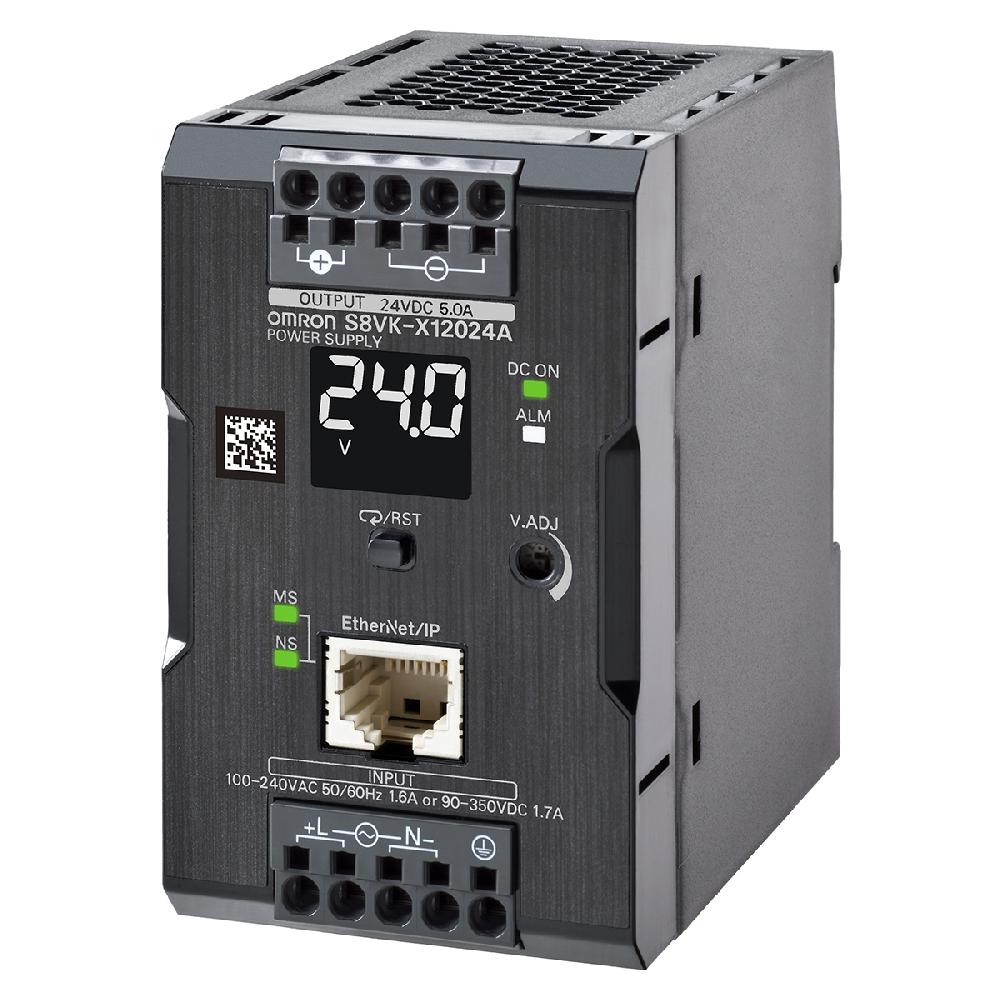

| Series | S8VK-X |
| MTBF | 110000h |
| Input Electrical Phase | Single Phase |
