| คุณสมบัติ | Value |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Minimum Input Voltage | 85V ac |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 24 V dc |
| Minimum Output Voltage | 24V dc |
| Maximum Output Voltage | 24V dc |
| Output Current | 2.5 A |
| Power Rating | 60W |
| Number of Outputs | 1 |
| Width | 91.2mm |
| Mounting Type | DIN Rail |
| Allowed Circuit Configurations | Parallel, Series |
| Minimum Temperature | -40°C |
| Maximum Input Current | 1.1 A @ 115 V ac, 660 mA @ 230 V ac |
| Power Signal Conversion Type | AC-DC |
| Efficiency | 87 % @ 115 V ac, 89 % @ 230 V ac |
| Weight | 250g |
| Maximum Temperature | +70°C |
| Line Regulation | 0.5% |
| Input Frequency Range | 50 → 60Hz |
| Ripple And Noise | 190mV Pk-Pk |
| Special Features | DC Input Supported |
| Application | Industrial |
| Holdup Time | 20 ms @ 115 V ac, 90 ms @ 230 V ac |
| Input Electrical Phase | Single Phase |

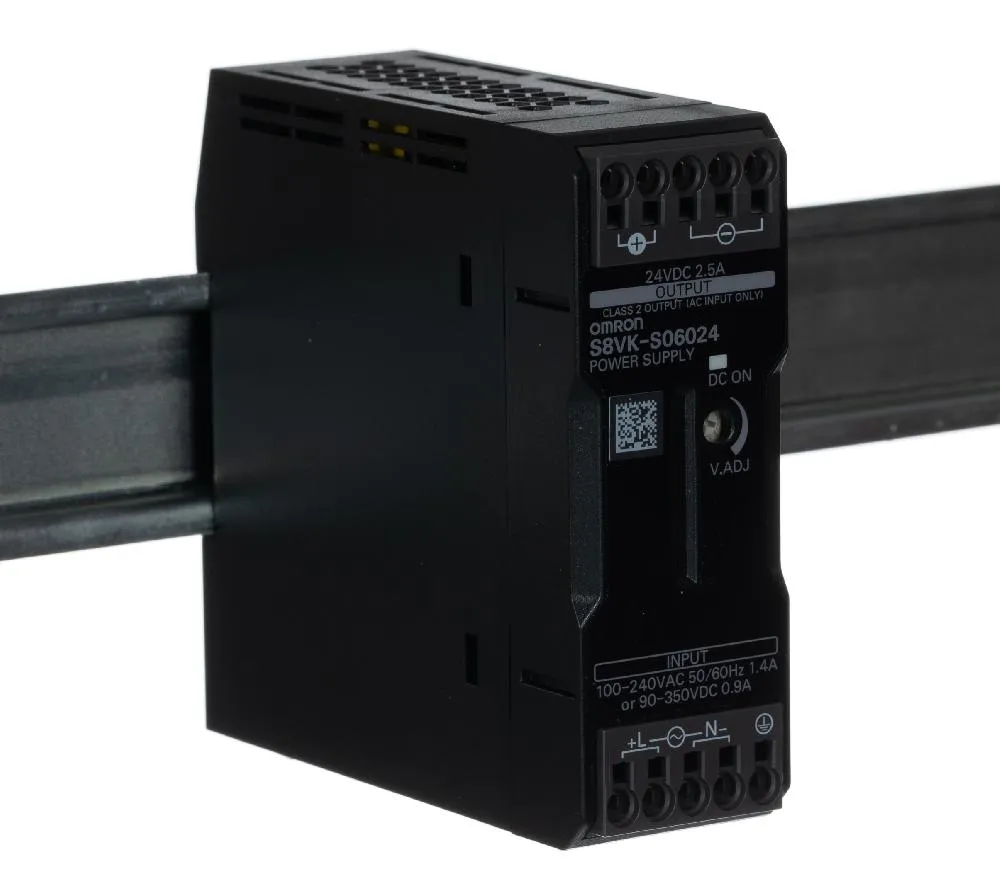

| Series | S8VK-S |
| Protection Features | Over Current Protection, Over Voltage Protection, Overload Protection |
| MTBF | 135000h |
