S8FS-C10024
รูปภาพประกอบอาจเป็นรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

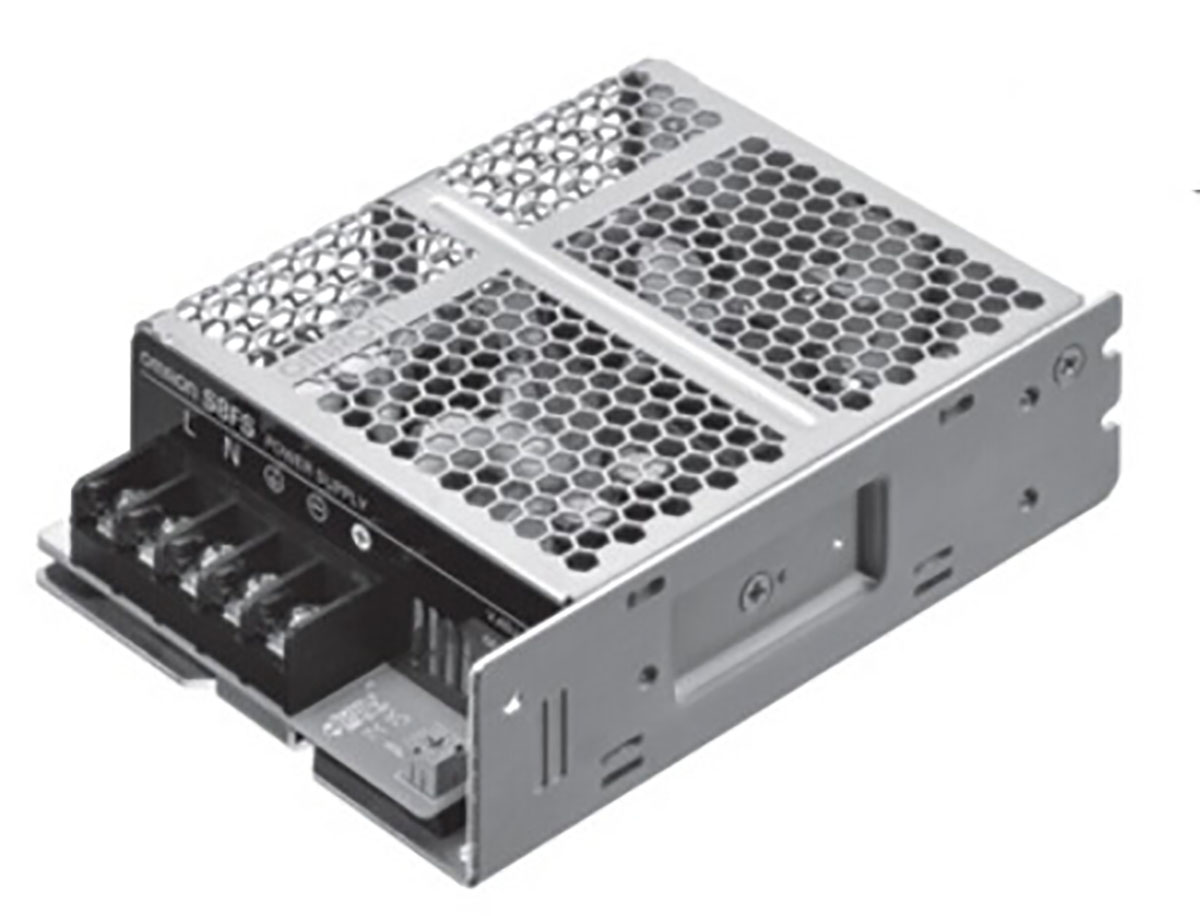

Omron S8FS-C10024 DIN Rail Power Supply 100W 24V 4.5A

ราคา : 2,450.002,900.00
ผู้ผลิต : Omron
รหัสสินค้า : S8FS-C10024

จัดส่งถึงลูกค้าใน 5-10 วันทำการ การจัดส่งฟรี ทาง Kerry Express

Add Line
หากต้องการใบเสนอราคา ติดต่อทางไลน์
คุณสมบัติ / Specifications

คุณสมบัติValue
AC or DC Input VoltageAc
AC or DC Output VoltageDc
Minimum Input Voltage85V ac
Maximum Input Voltage264V ac
Minimum Output Voltage24V dc
Maximum Output Voltage24V dc
Output Current4.5 A
Power Rating100W
Number of Outputs1
Dimensions38 x 97 x 159mm
Width97mm
Minimum Temperature-20°C
Line Regulation0.5%
Input Frequency Range47 → 450Hz
Allowed Circuit ConfigurationsSeries
Special FeaturesFull Lineup, High Reliability, Long Life, Wide Input Range
Ripple And Noise120mV Pk-Pk
Power Signal Conversion TypeAC-DC, DC-DC
MTBF135000h
Input Electrical PhaseSingle Phase
Holdup Time39ms
Standards MetCCC, CE, CSA, CULus Recognized
Output Voltage Adjustment Range±10%
Depth38mm
Efficiency87%
Weight400g
Mounting TypeDIN Rail Mount
SeriesS8FS-C
Maximum Temperature+60°C
Protection FeaturesOver Voltage Protection, Overload Protection
Maximum Input Current2A
