คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 48V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 29mm |
| Coil Resistance | 5.358 kΩ |
| Height | 15.7mm |
| Depth | 12.7mm |

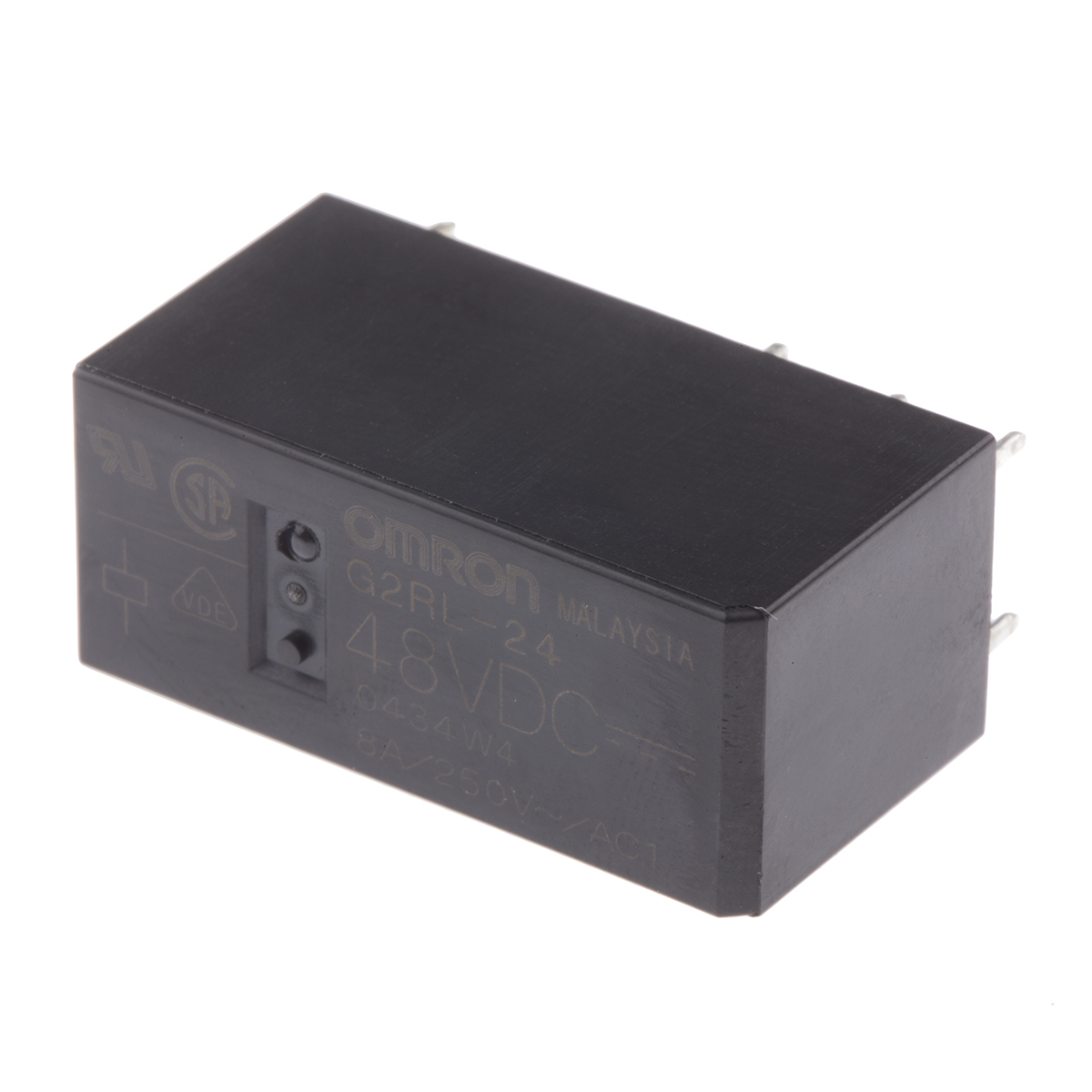

| Series | G2RL |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 2 kVA |
| Application | Power |
