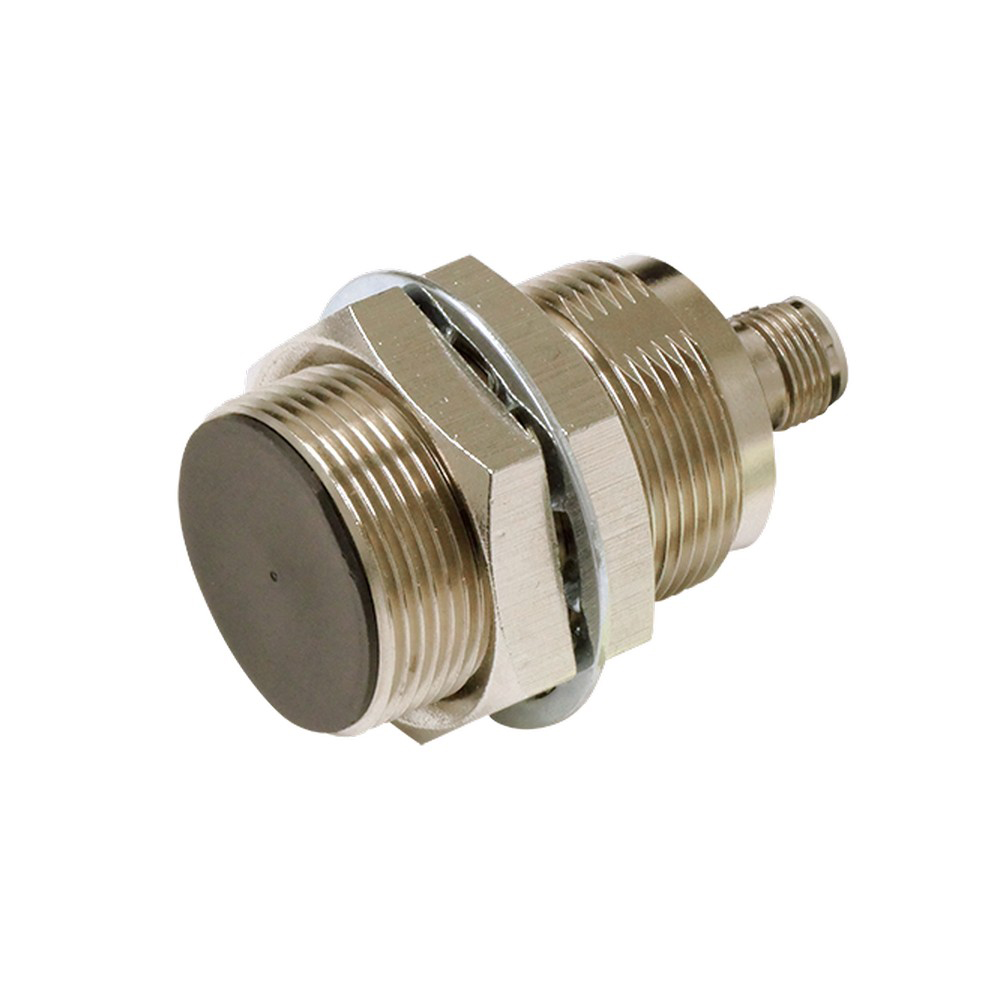

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Sensor Technology | Inductive |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP |
| Detection Range | 22 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Series | E2E-NEXT |
| Communication Protocol | IO-LINK |
| Length | 60.3mm |
| Width | 30mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Interface | IO-Link |
| Switching Current | 16 mA |
| IP Rating | IP67, IP67G, IP69K |
| Housing Material | Brass |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Shielding | Shielded |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 200Hz |
