RCP-1600-24
รูปภาพประกอบอาจเป็นรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

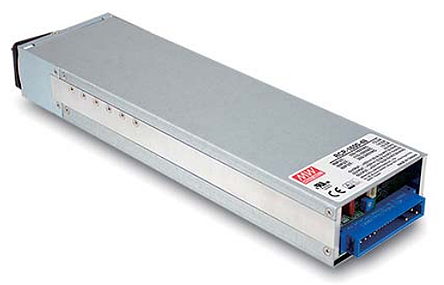

Mean Well RCP-1600-24 Switching Power Supply, 24V dc, 0 → 67A, 1608W

ราคา : 29,200.0029,650.00
ผู้ผลิต : MEAN WELL
รหัสสินค้า : RCP-1600-24

จัดส่งถึงลูกค้าใน 5-10 วันทำการ การจัดส่งฟรี ทาง Kerry Express

Add Line
หากต้องการใบเสนอราคา ติดต่อทางไลน์

คุณสมบัติ / Specifications

คุณสมบัติ รายละเอียด
Load Regulation ±0.5%
Input Voltage 90 → 264 V ac, 127 → 370 V dc
Output Voltage 24 V dc
Output Current 0 → 67A
Power Rating 1608W
Number of Outputs 1
Mounting Type Rack Mount
Efficiency 91%
MTBF 162.2kh
Line Regulation ±0.5%
Ripple And Noise 200mV Pk-Pk
Weight 1.9kg
Maximum Temperature +70°C
Input Frequency Range 47 → 63Hz
Minimum Temperature -30°C
Special Features High Efficiency, Universal AC Input/Full Range
Application Constant Current Source System, Distributed Power Architecture System, Electric Vehicle Charger System, Industrial Automation, Redundant Power System, Wireless/Telecommunication System
Power Signal Conversion Type AC-DC
Holdup Time 10 ms @ 230 V ac
Standards Met CB, CE, CULus Recognised, EMC: EN 55022/55024, EN 55011, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61204-3, PFC, TUV Rheinland, UL/EN/IEC 60950-1
Protection Features Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection
Maximum Input Current 8.5 A @ 230 V ac, 15 A @ 115 V ac
Series RCP-1600
